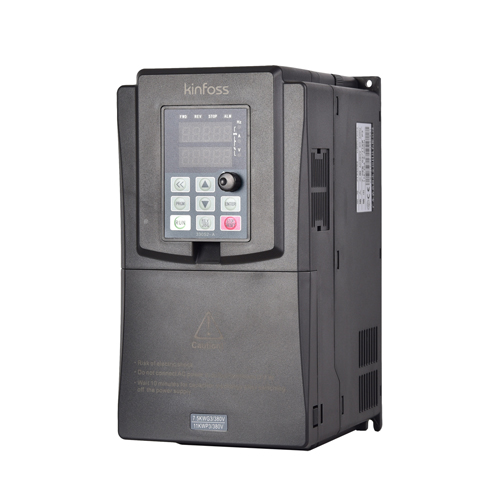

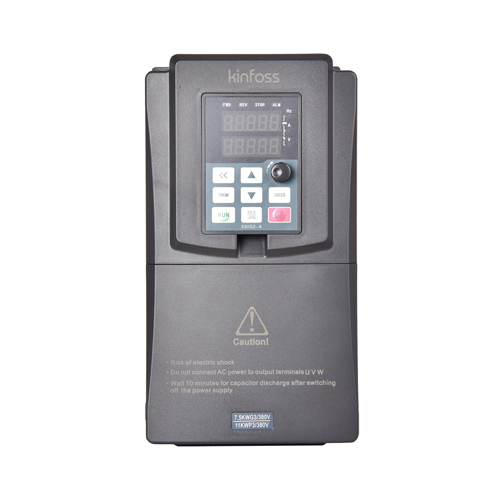

K20 Series Economical VFD (5.5~7.5kW) K20 Series Economical VFD (5.5~7.5kW) K20 Series Economical VFD (5.5~7.5kW)

K20 Series Economical VFD (5.5~7.5kW)

  • Product ID: 9527
  • size: 70
  • Material Science: cotton
  • INQUIRY

Product Details

Introduction

K20 series frequency inverter is our new developed economical inverter, it poured our company many years' inverter R&D experiences, which has very high cost performance. By upgrading the software and hardware, K20 series frequency inverter has very high reliability, high stability and excellent performance.

Quick Details

Place of Origin:    Shenzhen China                                                                 Product name:     Frequency inverter

Product name:     Frequency inverter                                                              Series No.:          K20

Size:                    W*H*D: 130*247*162cm                                                      Power:                5.5~7.5kW

Input voltage:      3AC 380V                                                                             Output voltage:   Three phase 380V

Supply Ability

30,000 PCS / Monthly

    Lead Time

    Quantity(Pieces)

    1 - 200

    200 - 500

    >500

    Est. Time(days)

    3~5

    7

    7~10


    Wiring Diagram

    K20 Series Economical VSD (0.75~2.2kW)(图1)


    Technical Specifications


    Item

    Technical Index

    Specification

    Input

    Input voltage

      3AC 380V±15%

    Input frequency

      50/60Hz±5%

    Output

    Output voltage

      0~rated input voltage

    Output frequency

      0~600.0Hz

    Control Features

    Control mode

      V/f control

      Sensorless vector control (SVC)

    Operation command mode

      Keypad control

      Terminal control

      Serial communication control (Modbus)

    Frequency setting mode

    Digital setting, analog setting, pulse frequency setting, serial communication setting, multi-step speed setting & simple PLC, PID setting, etc. These frequency settings can be combinated & switched in various modes.

    Overload capacity

      150% / 120s, 160% / 60s, 180% / 10s, 200% / 1s.

    Starting torque

      0.5Hz/150% (SVC), 1Hz/150% (V/f)

    Frequency accuracy

      Digital setting: 0.01Hz

      Analog setting: maximum frequency ×0.05%

    Automatic voltage regulation

      Keep output voltage constant automatically when input
      voltage fluctuating

    Input/output terminals

    Input terminals

      Programmable digital input: 5 multifunctional inputs

      2 programmable analog input:

      AI1, AI2: 0~10V / 4~20mA

    Output terminals

      Relay output: 1 channel (NO+NC)

      Open-collector output: MO1

      Analog output: AO1: 0~10V / 4~20mA

      DC voltage: 10V, 24V

    Communication terminals

      Build-in RS485 communication interface

      Standard MODBUS-RTU communication protocol

    Environment

    Ambient temperature

      -10~40°C, without direct sunshine.

    Humidity

      90%RH or less (non-condensing)

    Altitude

      ≤1000M: output rated power, <1000M: output derated

    Storage temperature

      -20~60°C


    Product Advantages


                        K20 Series Economical VFD (5.5~7.5kW)(图3)


    Optimized structure design

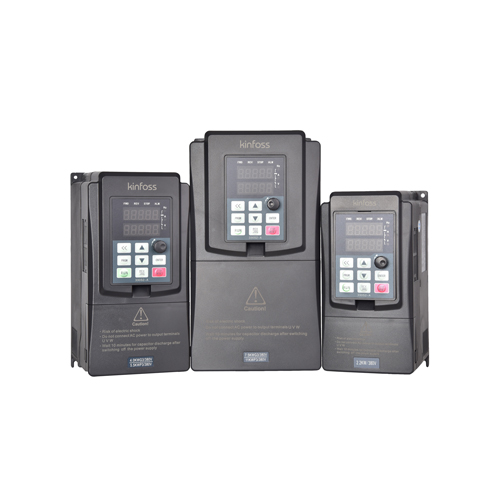

    1: Three sizes for 0.75~7.5kW, reasonable power distribution, high cost

        performance;

    2: Independent air duct design to prevent dust from entering the inverter.



                   K20 Series Economical VSD (0.75~2.2kW)(图3)


    Optimized hardware and software design

    1: Long life components selection;

    2: More reasonable layout of components, better MEC performance,

        strong anti-interference ability;



                     K20 Series Economical VSD (0.75~2.2kW)(图4)



    Build-in high thermal conductivity insulating material

    1: Alumina ceramic substrates are used for IGBT heatsink;

    2: IGBT inside temperature is reduced remarkably, the frequency inverter

        has better environmental adaptability.



                         K20 Series Economical VSD (0.75~2.2kW)(图5)


    Very strict production and testing

    1: Full automatic PCBA coating;

    2: Comprehensive R&D and production test;


    Selection Guide


    K20 Series Economical VFD (0.75~2.2kW)(图6)

    Model list


    Dimensions (mm)

    Model

    Output

     Power

    (kW)

    Output

    Current

    (A)


    H

    W

    D

    H1

    W1

    Aperture

    1AC 220V±15%

    K20-00075S2

    0.75

    4


    90

    187

    133

    80

    177

    4.5

    K20-00150S2

    1.5

    7

    K20-00220S2

    2.2

    9.6

    3AC 380V±15%

    K20-00075T4

    0.75

    2.1


    90

    187

    133

    80

    177

    4.5

    K20-00150T4

    1.5

    3.8

    K20-00220T4

    2.2

    5.1

    K20-00400T4

    4.0

    10

    100

    207

    142

    90

    197

    4.5

    K20-00550T4

    5.5

    13

    130

    247

    162

    115

    236.5

    5

    K20-00750T4

    7.5

    17


    Applications

    Packing machine, food machine, wooden machine, printing and dyeing machines, medical equipment, etc.
