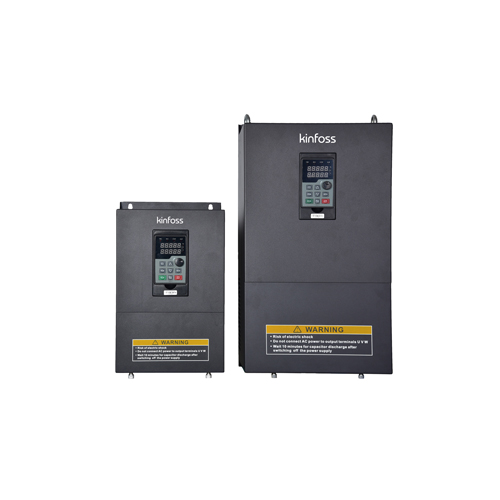

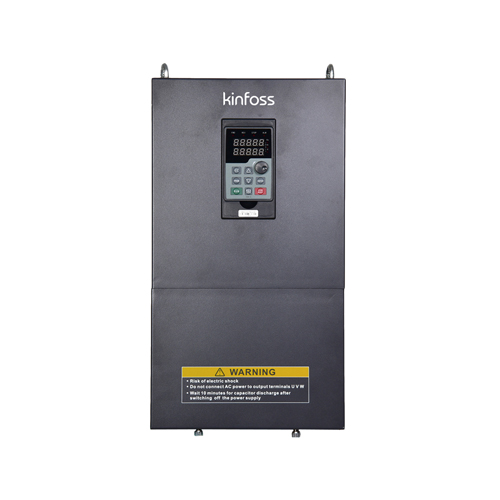

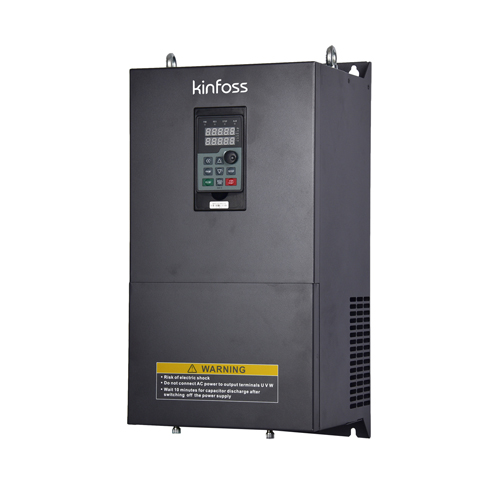

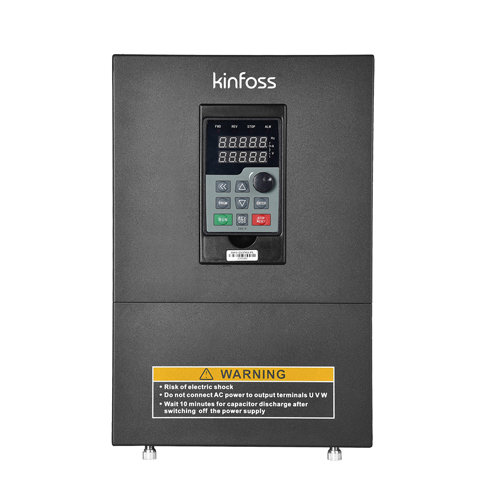

K30 series general prupose VFD (≥30kW)

Est. Time(days)

3~5

7

7~10

Input

Input voltage

1AC 220~240V±15%

3AC 220~240V±15%
3AC 380~460V±15%

Input frequency

    50/60Hz±5%

Output

Output voltage

     0~rated input voltage

Output frequency

     0~6000Hz

Control Features

Control mode

     V/f control
     Sensorless vector control
     Torque control

Operation command mode

     Keypad control
     Terminal control
     Serial communication control (Modbus)

Frequency setting mode

Digital setting, analog setting, pulse frequency setting, serial communication setting, multi-step speed setting & simple PLC, PID setting, etc. These frequency settings can be combined & switched in various modes.

Overload capacity

150% / 120s

160% / 60s

180% / 10s

200% / 1s

Starting torque

0.5Hz/180% (SVC)

1Hz/150% (V/f)

Speed control precision

±0.5% (SVC)

Carrier frequency

0.5~16.0kHz, automatically adjusted according to temperature and load characteristics

Frequency accuracy

Digital setting: 0.01Hz
Analog setting: maximum frequency ×0.05%

Torque boost

Automatically torque boost;

manually torque boost: 0.1%~30.0%

V/f curve

Three types: linear, multiple point and square type

(1.2 power, 1.4 power, 1.6 power, 1.8 power, square)

Acceleration/deceleration mode

Straight line / S curve; four kinds of acceleration / deceleration time, range: 0.0s~65000s

Braking unit

Standard build-in (0.75~37kW)

Optional build-in (45~110kW)

DC braking

   DC braking when starting and stopping
   DC braking frequency: 0.0Hz~maximum frequency
   Braking time: 0.0s~25.0s

Jog operation

Jog operation frequency: 0.0Hz~maximum frequency

Jog acceleration/deceleration time: 0.1s~3600.0s

Simple PLC & multi-step speed operation

It can realize a maximum of 16 multi-step speeds running by the built-in PLC or control terminal.

Built-in PID

Standard build-in

Automatic voltage regulation

Keep output voltage constant automatically when input voltage fluctuating

Control Function

Wobble frequency control

Multiple triangular-wave frequency control, special for textile

Timing / length / counting control

Timing / length / counting control function

Over-voltage & over-current stall control

Limit current & voltage automatically during the running process, prevent frequent over-current & over-voltage tripping

Fault protection function

Comprehensive protections include over-current, over-voltage, under-voltage, overheating, default phase, overload, shortcut, etc., can record the detailed running data while failures happen.

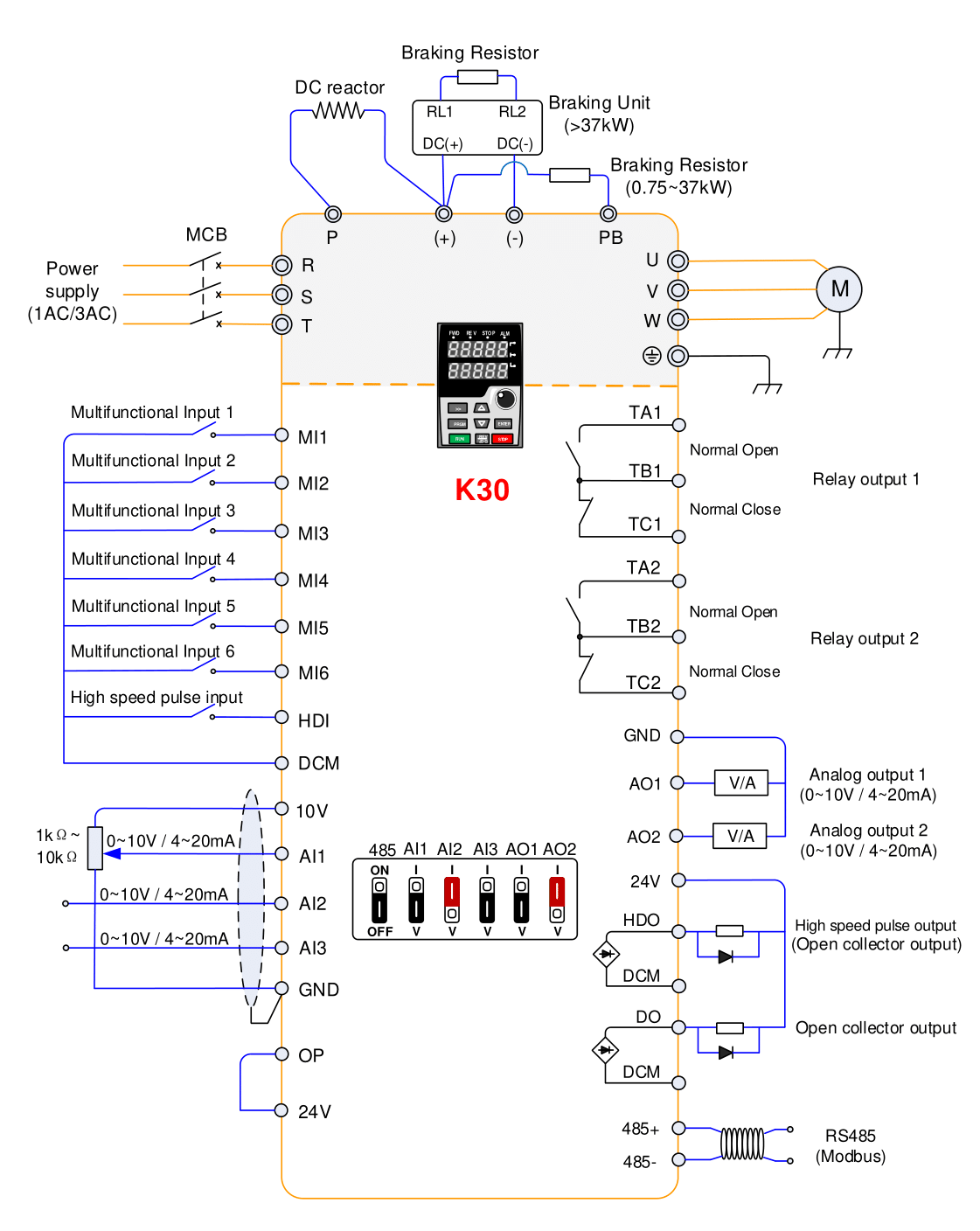

Input/output terminals

Input terminals

Programmable digital input: 7 multifunctional inputs, HDI can be work as high speed pulse input.

3 programmable analog input:

AI1, AI2, AI3: 0~10V / 4~20mA

Output terminals

2 relay outputs,
2 open collector outputs,
2 analog outputs, 0~10V / 4~20mA

Communication terminals

Build-in standard RS485 communication interface, support MODBUS-RTU communication protocol

Human machine interface

LED display

Display frequency setting, output frequency, output voltage, output current, etc. Two lines display

Environment

Ambient temperature

-10~50°C, without direct sunshine.

Humidity

90%RH or less (non-condensing)

Altitude

≤1000M: output rated power, >1000M: output derated

Storage temperature

-20~60°C

High start torque

0.5Hz/150% (Sensorless vector control)

1Hz/100% (V/f control)

Ambient temperature

-10~50℃, 100% power output

Accurate control performance

1: Optimized vector control performance, fast response and stably torque

    output at low frequency;

2: More than 30 failure protection functions build-in, ensure the system

    works stably and safety.

First-class components build-in

1: Select first-class components strictly, ensure the products have good

    quality;

2: Never cheat on the    material, sufficient size of component selected.

Better environmental adaptability

1: Full automatic PCBA coating, high quality conformal coating material

   selected. Better performance of  waterproof, dustproof and anti-corrosion.

2, Independent air duct design, better heatsink performance.

3. Sufficient radiator and cooling fan design, low temperature rise on

    AC drive itself.

Better EMC performance

Optimized hardware and software design, better EMC and

anti-interferences performance.

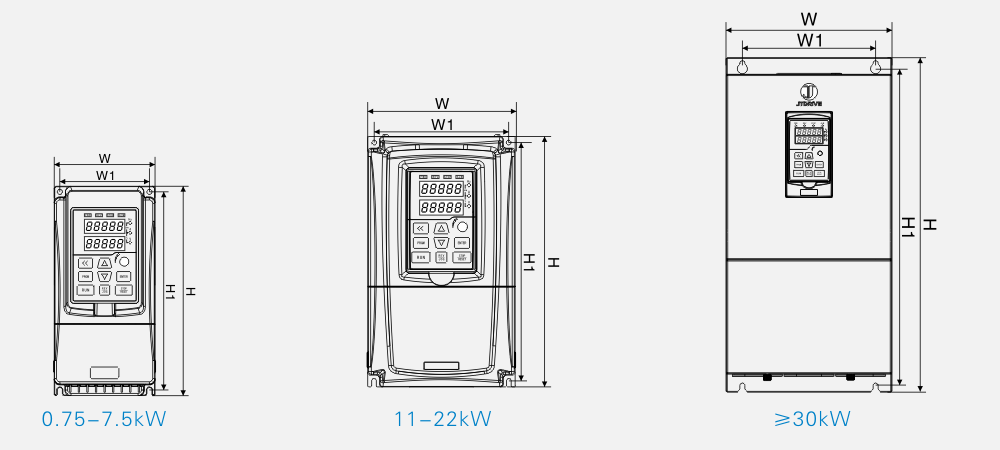

Model

Output

 Power

(kW)

Output

Current

(A)

H

W

D

H1

W1

Aperture

3AC 380V±15%

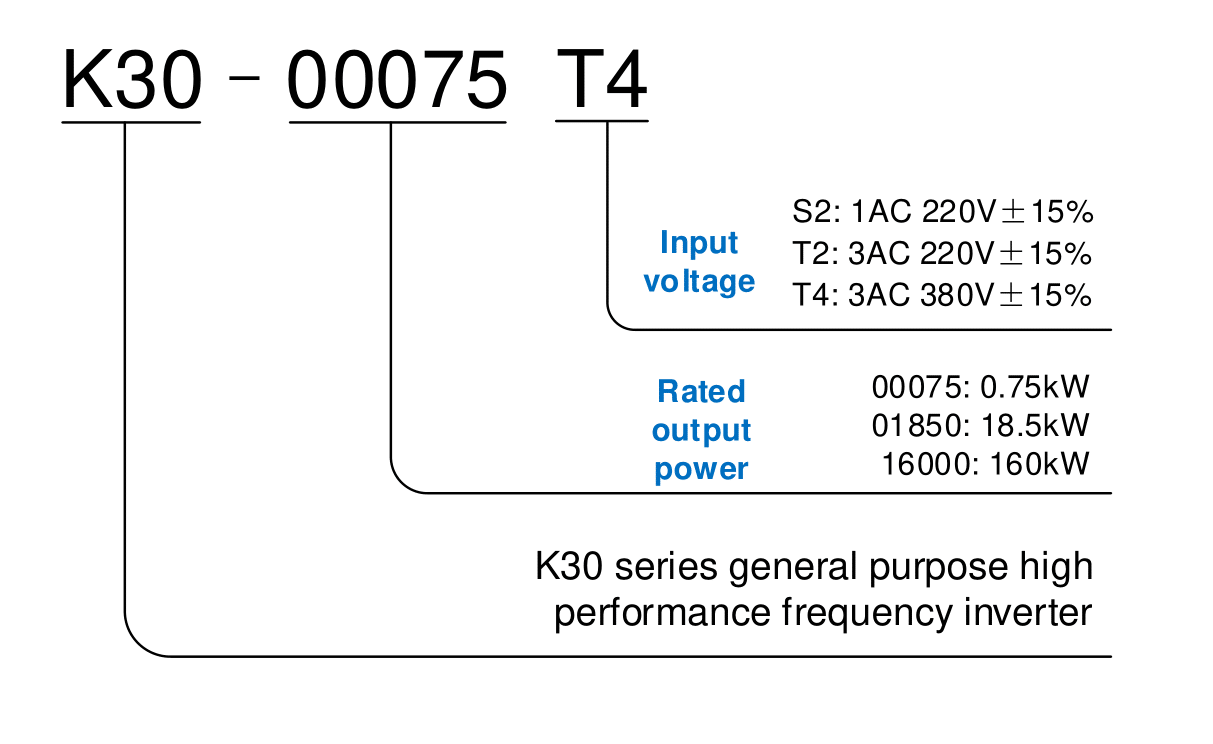

K30-00075T4

0.75

2.1

187

90

133

177

80

4.5

K30-00150T4

1.5

3.8

K30-00220T4

2.2

5.1

K30-00400T4

4.0

10

207

100

142

197

90

4.5

K30-00550T4

5.5

13

247

130

162

236.5

115

5

K30-00750T4

7.5

17

K30-01100T4

11

25

272

160

201

259

146

7

K30-01500T4

15

32

K30-01850T4

18.5

37

313

211

202

299

196

7

K30-02200T4

22

45

K30-03000T4

30

60

418

252

207

399

201

9

K30-03700T4

37

75

K30-04500T4

45

90

603

299

276.7

571

240

10

K30-05500T4

55

110

K30-07500T4

75

152

643

388

312

618

280

12

K30-09000T4

90

176

K30-11000T4

110

210

K30-13200T4

132

253

849

480

389

822.5

369

12

K30-16000T4

160

304

K30-18500T4

185

350

K30-20000T4

200

380

1060

650

380.5

1030

420

12

K30-22000T4

220

426

K30-25000T4

250

465

K30-28000T4

280

520

K30-31500T4

315

585

K30-35500T4

350

650

1361.5

800

390

1300

520

16

K30-40000T4

400

725

K30-45000T4

450

820

K30-50000T4

500

900

1531.5

1030

453

1470

800

16

K30-56000T4

560

1000

K30-63000T4

630

1100
