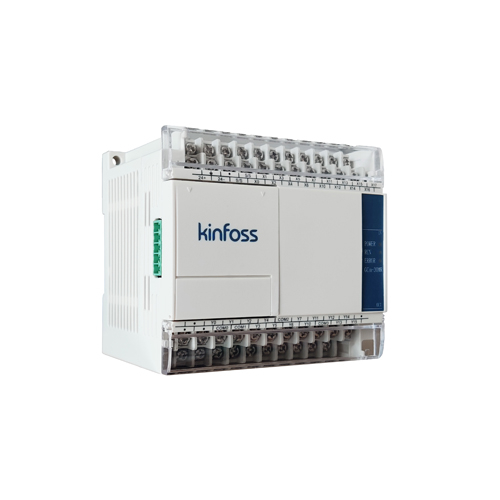

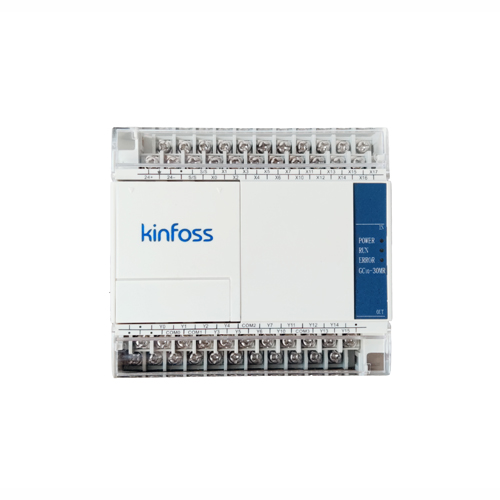

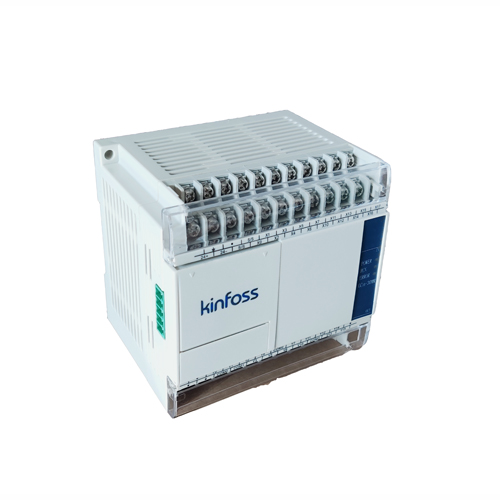

GC10 Series PLC

Product Details

Introduction

The GC10 series PLC controller has the characteristics of excellent performance, high stability, high control accuracy. It's fully compatible with Mitsubishi FX3U programming software. It has been running in the field of industrial automation for many years and is satisfied with the application of different industrial automation systems.

Quick Details

Place of Origin:    Shenzhen China                                                                  Brand name:      Kinfoss

Product name:     PLC controller                                                                      Series No.:         GC10

Applications:        Industrial automation, machine control                                Input & Output:   8+6, 12+8, 16+14

Warranty:             18 months                                                                            Color:                 gray

Supply Ability

500 PCS / day

    Lead Time

    Quantity(Pieces)

    1 - 200

    200 - 500

    >500

    Est. Time(days)

    2~3

    3~5

    6~10


    Product and Installation


    G10 Series PLC(图1)

    Technical Specifications



    Items

    GC10 series master module specifications

    GC20 series master module specifications

    Operation mode

    Cycling scan + interrupt mode

    Programming mode

    Commands list, ladder diagram, functional    modules

    Commands category

    Basic commands

    27

    Application commands

    136

    Execution time

    Basic commands

    0.1us

    Application commands

    1~10us

    Program capacity

    2K

    16K

    X

    External input relay

    X0-X17, octal

    X0-X377, octal

    Y

    External output relay

    Y0-Y15, octal

    Y0-Y377, octal

    M

    Auxiliary relay

    M0-M511

    M8000-M8255 (special purpose)

    M0-M3071

    M8000-M8255 (special purpose)

    S

    Status relay

    S0-S127 (status maintenance)

    S0-S9 (initializing)

    S10-S19 (return to origin)

    S0-S999 (status maintenance)

    S0-S9 (initializing)

    S10-S19 (return to origin)

    S900-S909 (alarm)

    T (Timer)

    100ms

    T0-T31

    T0-T199

    T250-T255 (Cumulative)

    10ms

    T32-T62

    T200-T245

    1ms

    T63

    T246-T249 (Cumulative)

    C (Counter)

    16 bits increase counter

    C0-C31

    C0-C199

    32 bits increase/decrease counter

    No

    C200-C234

    32 bits high speed counter

    C235-C255

    C235-C255

    D

    Data register

    D0-D255

    D1000-D2999 (special for documents)

    D8000-D8255 (special purpose)

    D0-D7999

    D8000-D8255 (special purpose)

    V

    Indexed Addressing Register

    V0-V7

    Z

    Indexed Addressing Register

    Z0-Z7

    Pules output

    Y0-Y3, 4 independent 200kHz output

    External input interrupt

    X0-X5, support upper and lower pulse signals

    High speed counting interrupt

    6

    Timing interrupt

    3

    Power off maintenance function

    Fixed store area

    Full range storage.

    M, S, D, C, T can be stored segmented.

    Storage medium

    E2PROM

    Digital filter

    X0-X7 provide software digital filter

    Serial communication

    COM0—RS232

    COM1—RS485 (optional)

    COM2—RS232 (optional)

     Power Supply

    Items

    ≤20 (input + output terminals)

    >20 (input + output terminals)

    Rated voltage

    AC100~240V, DC24V

    Voltage vibration range

    AC85~265V, DC20.4~26.4V

    Rated frequency

    50/60Hz

    Allowed instantaneous power failure time

    <10ms, PLC works normally

    Power fuse

    250V, 1A

    5Φ*20mm

    250V, 3.15A

    5Φ*20mm

    Surge current

    Max. 15A, <5ms / AC 100V

    Max. 25A, <5ms / AC 200V

    Max. 20A, <5ms / AC 100V

    Max. 60A, <5ms / AC 200V

    Power consumption

    30W

    60W

     Input / output  specifications

    Items

    Relay output terminals

    Transistor output terminals

    Output circuit power

    < AC250V, DC30V

    DC5~24V

    COM current

    --

    < 0.1mA / 30VDC

    Circuit isolation

    Mechanical insulation

    Photoelectric coupling insulation

    Indicator

    When the electricity go through the coil of    relay, LED light-on.

    When the photoelectric coupling is driven, LED    light-on

    Leakage current of open circuit

    --

    0.1mA / 30VDC

    Max. output current

    Resistive load

    2A/1 input & output terminal

    8A/1 COM terminal

    0.5A/1 input & output terminal

    0.8A/4 terminals

    (Y0, Y1 is 0.3A)

    Inductive load

    80VA

    12W/DC24V

    (Y0, Y1 is 0.3A)

    Electric light load

    100W

    0.9W/DC24V

    (Y0, Y1 is 0.9W/DC24V)

    ON response time

    About 10ms

    <0.5ms

    5µs (for Y0 and Y1)

    OFF response time

    About 10ms

    <0.5ms

    5µs (for Y0 and Y1)



    Product Advantages



    As high as 300K

    high speed pulse output

       3 independent channels, 300K high speed pulse output compatible with PWM,

       trapezoidal acceleration / deceleration, and positon command.



    Build-in Modbus

    Communication

       ♦ Support Modbus RTU Master / Slave protocol;

       ♦ Communicate with frequency inverter and servo drive.



    Interrupt function

        External interrupt, timer interrupt, counter interrupt, some special operation can be

        done in the interrupt.

       ♦ X0-X5 can be used as external interrupt;

       ♦ 3 independent timer interrupt;

       ♦ 6 independent software timer interrupt



    Sufficient soft components

       ♦ Timer: 256 Points

       ♦ Auxiliary relay: 3072 points

       ♦ Counter: 256 points

       ♦ Data register: 8000 points

       ♦ Status register: 1000 points



    Sufficient extension capacities

       ♦ I/O extension modules

       ♦ Analog extension modules

       ♦ Communication extension modules

       ♦ Temperature extension modules

       Except for I/O extension modules, as many as 8 extension modules can be connected



    Strong program

    capacity

       ♦ Sufficient PLC command sets

       ♦ Both offline and online commissioning are available

       ♦ Program encryption is available, protect the copyright.



    Real time clock

       Build-in RTC clock, the clock keep working after power off



    High speed counter inside

       ♦ Single phase counting: 2 * 50 kHz, 4 * 10 kHz

       ♦ Double phase counting: 2 * 25 kHz, 2 * 5 kHz

       ♦ Support 4 frequency doubling counting



    High speed calculation

       ♦ Basic commands, 0.1us/command

       ♦ Application commands, 1us/command

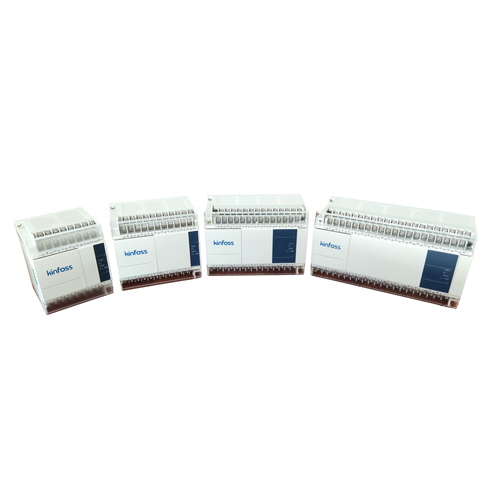

    Selection Guide

         Main Modules

    Models

    Digital input

    Digital output

    Output type

    Remark

    GC10-0806MT

    8

    6

    Transistor

    /

    GC10-0806MR

    8

    6

    Relay

    /

    GC10-1208MT

    12

    8

    Transistor

    /

    GC10-1208MR

    12

    8

    Relay

    /

    GC10-1614MT

    16

    14

    Transistor

    /

    GC10-1614MR

    16

    14

    Relay

    /

    GC20-2416MT

    24

    16

    Transistor

    Terminals are pluggable

    GC20-2416MR

    24

    16

    Relay

    Terminals are pluggable

    GC20-3624MT

    36

    24

    Transistor

    Terminals are pluggable

    GC20-3624MR

    36

    24

    Relay

    Terminals are pluggable



       Extension Modules

    Models

    Digital input

    Digital output

    Remark

    GC10-0808ERN

    8

    8

    Relay output

    GC10-0808ETN

    8

    8

    Transistor output

    GC10-0016ERN

    0

    16

    Relay output

    GC10-0016ETN

    0

    16

    Transistor output

    GC10-0016ENN

    16

    0

    /

    GC10-1616ERA

    16

    16

    External power supply

    Relay output

    GC10-1616ETA

    16

    16

    External power supply

    Transistor output

    GC10-1616ERN

    16

    16

    No need external power supply

    Relay output

    GC10-1616ETN

    16

    16

    No need external power supply

    Transistor output


       Extension Cards

    Models

    Digital input

    Digital output

    Digital input

    Digital output

    Remark

    GC10-4EX-BD

    4

    /

    /

    /



    GC10-4EY-BD

    /

    4

    (Transistor)

    /

    /



    GC10-3AM-BD

    /

    /

    2

    1



    GC10-4AD-BD

    /

    /

    4

    /



    GC10-RS485-BD

    /

    /

    /

    /

    Modbus

    GC10-CAN-BD

    /

    /

    /

    /

    CAN

    Applications

    Every kind of induatrial automation system and machine system.
