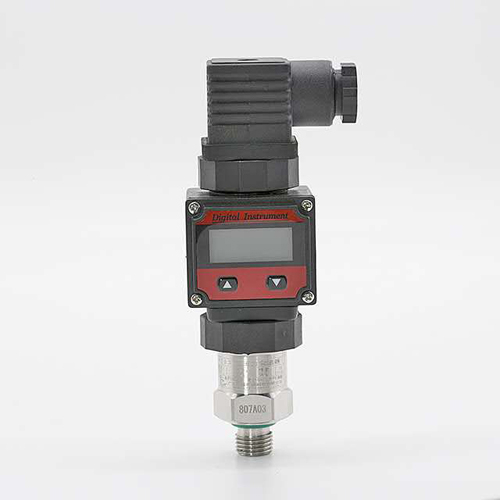

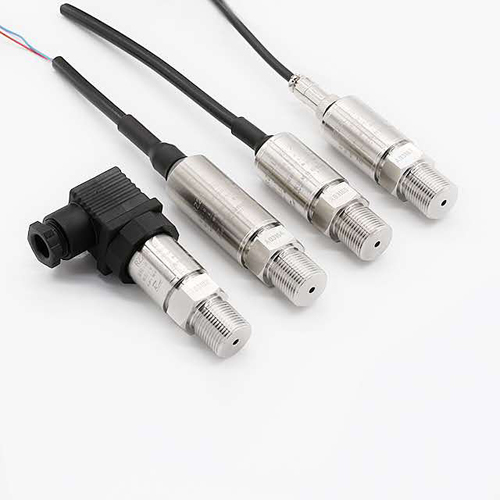

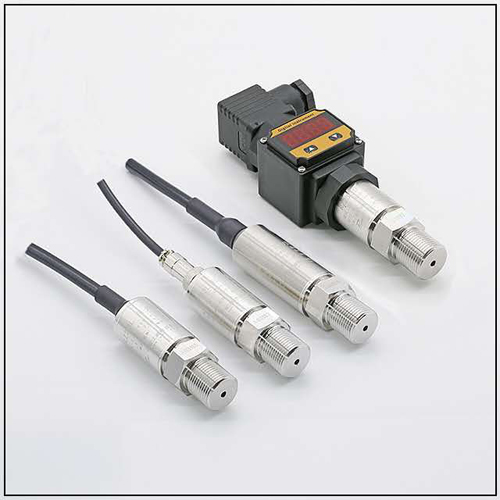

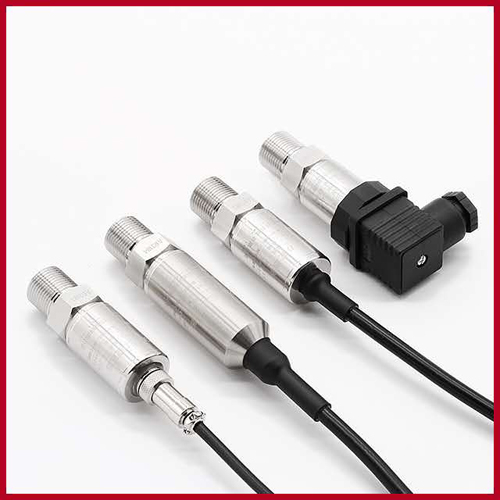

RZ23L Series Pressure Transmitter
Product Details
RZ23L series pressure transmitter is an industrial pressure measuring instrument with high accuracy, wide application range, and excellent cost performance.
RZ23L's pressure measurement sensitive components use metal isolation diaphragm structure diffused silicon piezoresistive or ceramic capacitor sensors; the packaging structure adopts a miniature integrated structure in which the sensor and circuit are packaged in the same stainless steel shell; the overall laser welding, signal processing adopts Specially stable, high efficiency, linearity better than 0.01% imported conditioning circuit technology, the product has passed strict testing and aging screening of components, semi-finished products and finished products. These conditions ensure that the transmitter has high accuracy, good stability, and strong anti-interference ability.
l Reverse polarity protection and instantaneous over-current and over-voltage protection, meeting EMI protection requirements;
l Through the internal potentiometer, the zero point and range can be accurately adjusted;
l The output signal has a variety of standard specifications such as: 4～20mA, Rs485 digital signal, HART protocol 4～20mA, can be connected to the display meter.
l Wide range of measurement.
l All stainless steel structure, various types of pressure ports, with flush membrane type, sanitary type, anti-corrosion type, etc., protection grade IP65.
l Mutli-type of pressure connection.
l Intrinsically safe explosion-proof products meet the requirements of GB3836.4 standard and have obtained the explosion-proof certificate, and the explosion-proof mark is ExiaⅡCT6;
Classical applications:
u Pressure measurement and control system for industrial pipelines and vessels;
u Hydraulic and pneumatic equipment such as aircraft, loaders, compressors, etc.
u Pressure measuring for central air-conditioner, auto air-conditioner, etc.
Supply Ability
500 PCS / day
Lead Time
Quantity(Pieces) | 1 - 200 | 200 - 500 | >500 |
Est. Time(days) | 2~3 | 3~5 | 6~10 |
Technical Specifications
Functional parameters | |
Measurement range | 0～3kpa…0～100Mpa |
Pressure specification | Positive pressure (Includes gauge pressure and sealed gauge pressure), negative pressure, absolute pressure. |
Accuracy level | ±0.5%FS, ±0.25%FS，±0.1%FS (Test conditions: temperature 20±2℃, temperature vabration <1℃, air pressure 86～106kPa, humidity 45%RH～75%RH, no vibration and electro-magnetic interference) |
Ability of over pressure | 1.1～6 times of measurement range. (Varied from different measurement ranges) |
Working temperature | -40～80℃ |
Zero temperature drift | ≤0.02%FS/℃ (doubled in proportion when lower than 100kPa) |
Full range drift | ≤0.02%FS/℃ (doubled in proportion when lower than 100kPa) |
Annual stability | <0.1%FS/Year (Typical); <0.2%FS/Year (Maximum) |
| Frequency response | Sensor<1ms; transmitter≤15ms |
Service life | >1 million times pressure measurement circle |
Electrical parameters | |
Power supply | 24VDC 12VDC(selected) 5VDC(selected) |
Current load | <(U-10)/0.02Ω [U: power potential] |
Output signal | Two-line 4～20mA, RS485, etc. |
Dielectric strength | 500V no breakdown |
Insulation resistance | >500MΩ |
The effect of fluctuation of power supply on output | <0.003%FS/V |
Explosion-proof indication | Ex ia IIC T6 |
Requirements for electrical connection and wire diameter | HSM connector(wire diameter Φ4.5～Φ6.5mm) or 1m cable |
Physical parameters | |
Applicable medium | Liquid and gas which would not react to the structure material (sensor and seal material) |
Sensor foundation material | Stainless steel, etc. |
Sensor seal material | Fluororubber, ceramics, adhesive, etc. (no seal material for welding structure) |
Protection level | IP65, IP67, IP68 |
Weight | Approximately 150g～10kg(varied from sub-types) |
Surroundings parameters | |
Atmospheric pressure | 60～110kPa |
Environment humidity | ≤95%RH |
Storage temperature | -40～120℃ |
Vibration | Under the condition of 10Grms, 20～2000Hz variation lower than 0.5%FS (only effective for general specification which the vibration limitation is 15g) |
Impact | After 100g, 10ms impact the variation is lower than 0.5%FS (only effective for general specification which the impact limitation is 120g) |
Electromagnetic/RF interference | Under the condition of 10～300MHz and 15V/m, the error is lower than 0.5%FS |

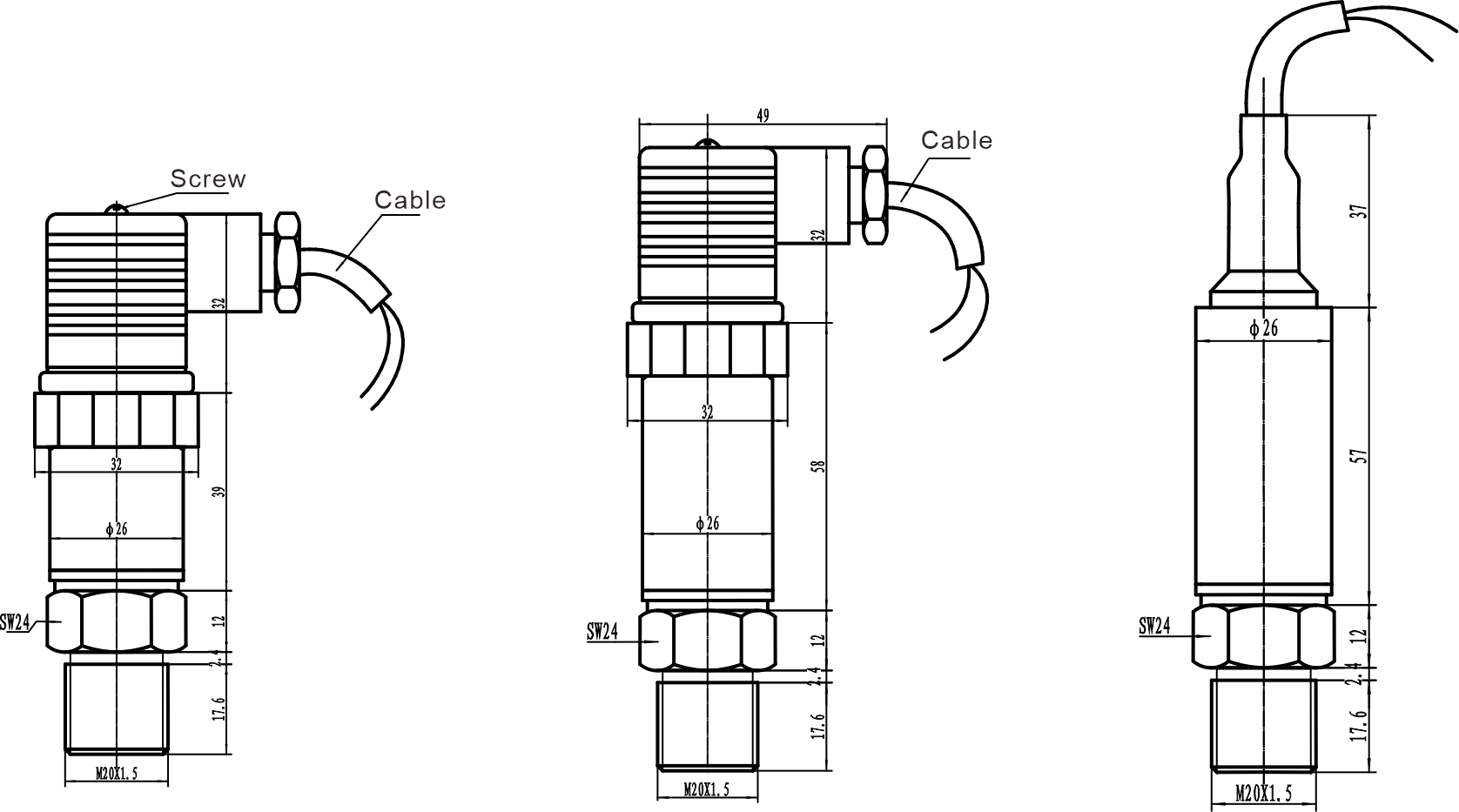

Outline Dimensions
Note:
1. Unit (mm)
2. Despite the difference of connection dimension, the outer dimension may be different; customized products please consult us.
Electrical Connections

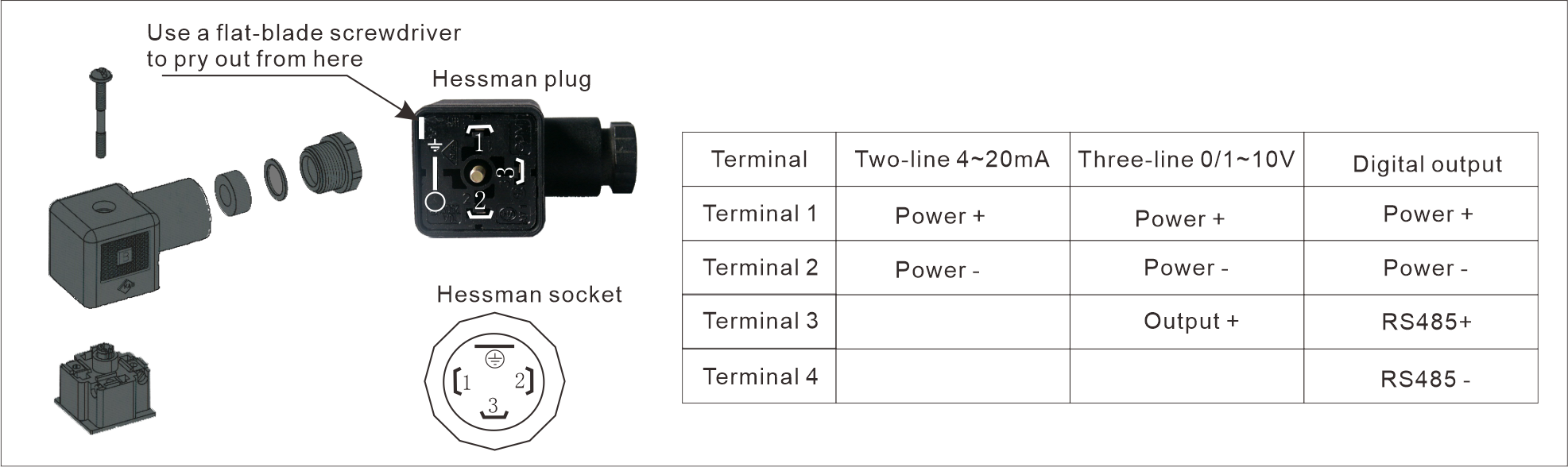

Hessman lug assembling and connection schematic diagram:

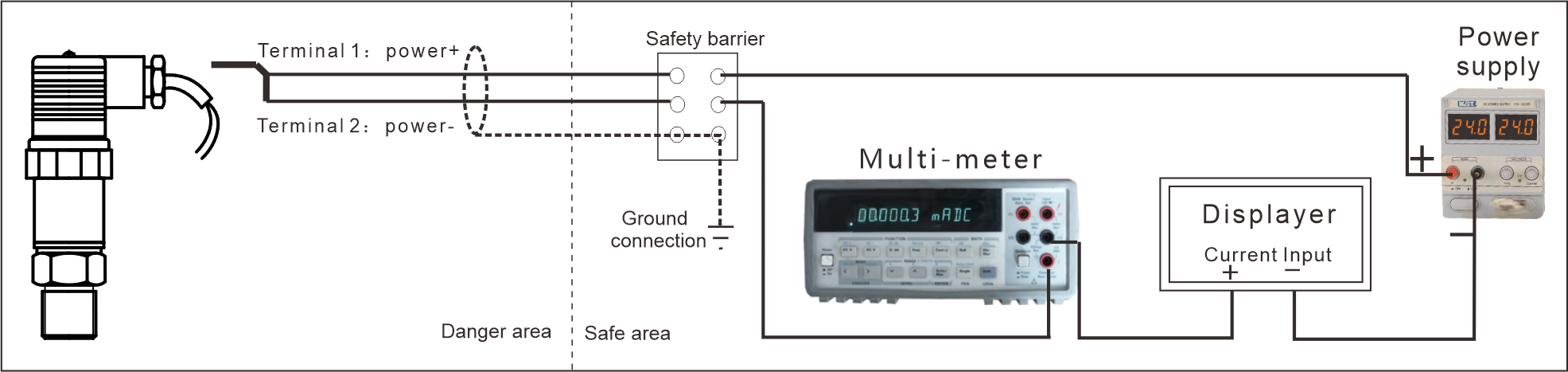

1: Schematic diagram for electrical connection of 2-line 4～20mA analog signal output:

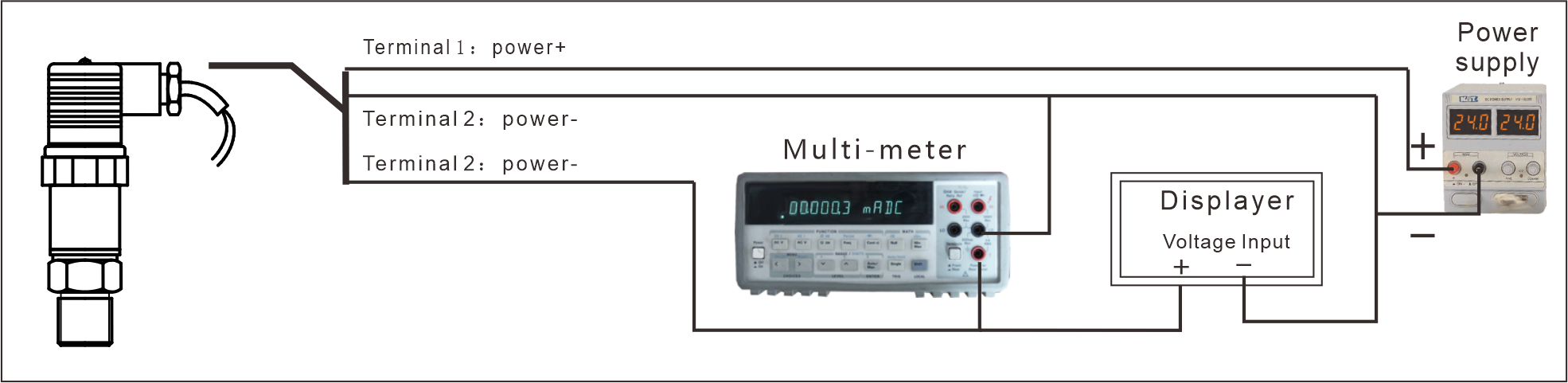

2: Schematic diagram for electrical connection of 3-line 0-10V DC (0/1-5V DC) analog signal output:

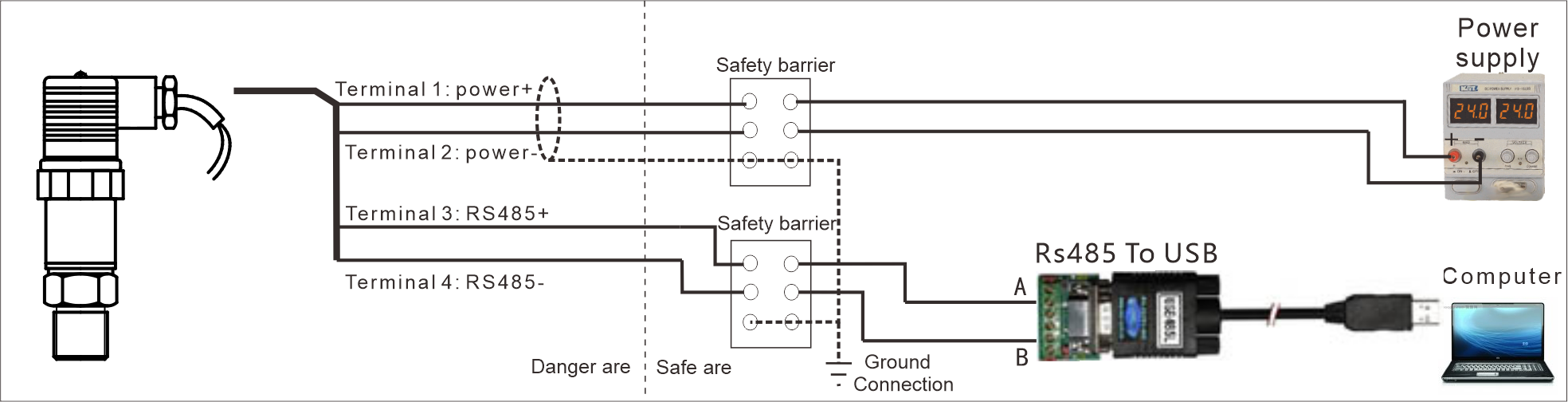

3: Schematic diagram for electrical connection of 4-line 485 digital signal output:

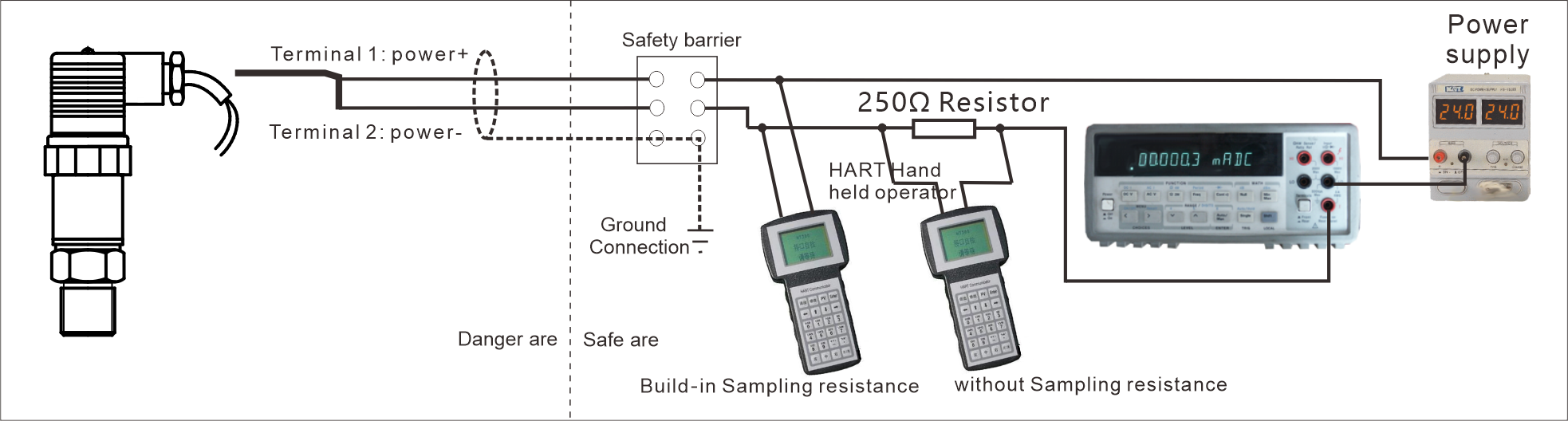

4: Schematic diagram for electrical connection of HART protocol liquid level transmitter:

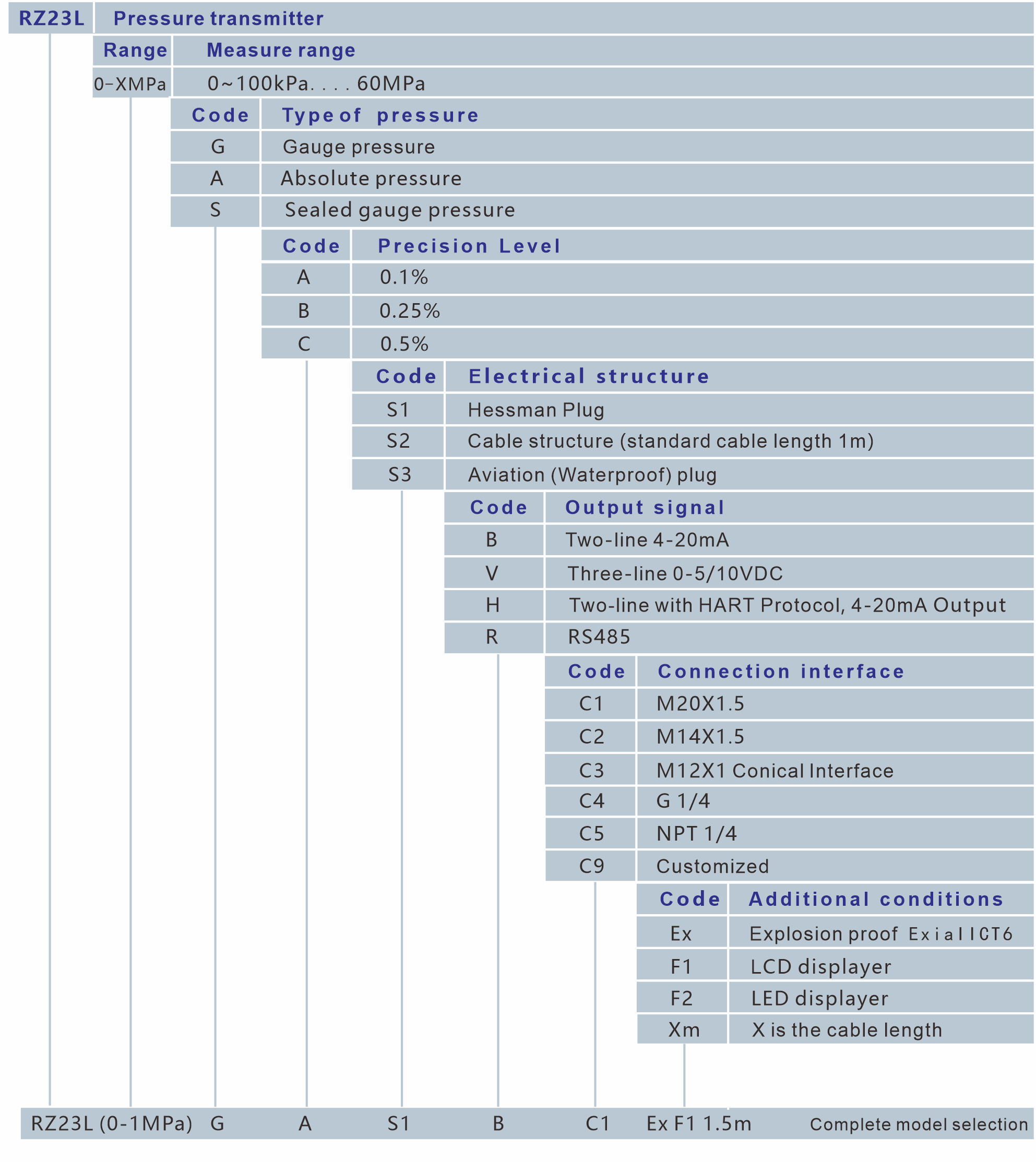

Selection Guide
Note:
1. Special requirements please consult our company and mark them in the order document in detail.
2. The application medium must be compatible with the selected product.
3. Please note that the explosion-proof product does not include the digital displayer.

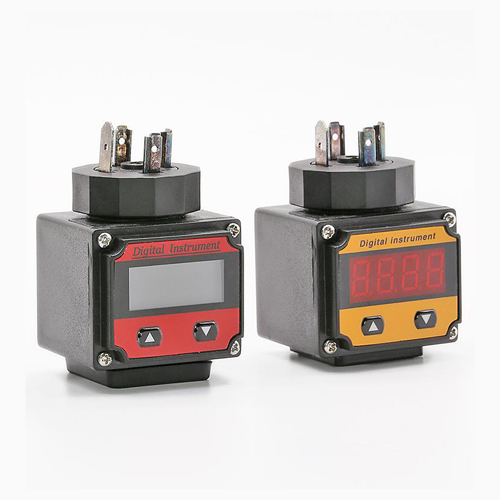

4. If order transmitter with LCD or LED meter, power supply cannot be lower than 15V DC.
5. Customized connector type and size can be noted beside the selection model.
