Frequency inverter

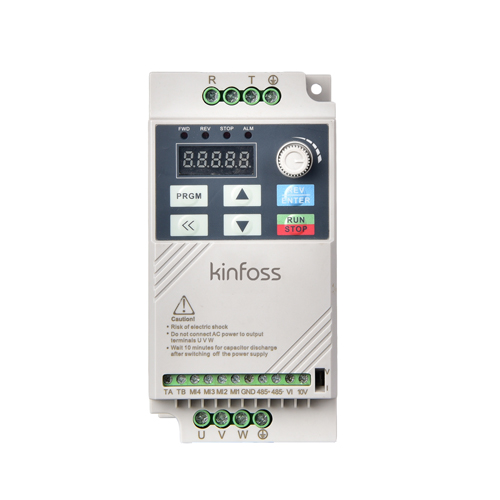

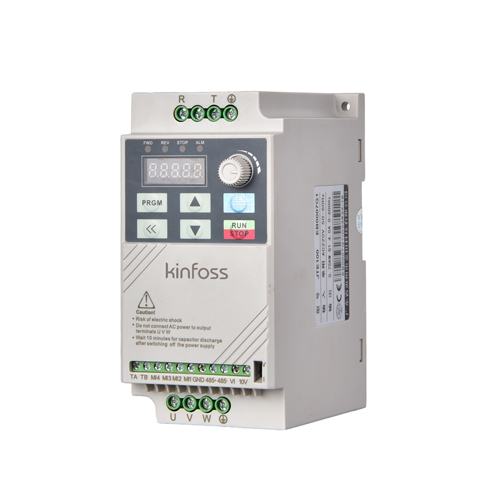

K10 Series Mini Size VFD

Product ID： 9530
size： 100
Material Science： cotton
INQUIRY

Product details

Introduction

K10 series frequency inverter is a simple and economical inverter based on our company many years' inverter R&D experiences, which has very high cost performance. The inverter is compact in structure, which can meet both guide rail and screw installation. During the design process, the overheating and overload requirements of the product are fully considered, which is satisfied in the application of industrial field.

Quick Details

Place of Origin: Shenzhen China Brand name: Kinfoss

Product name: Frequency inverter Series No.: K10

Size: W*H*D: 72.5*142.5*113.8cm Power: 0.4~2.2kW

Input voltage: 1AC or 3AC 220V, 3AC 380V Output: Three phase 220V or 380V

Supply Ability

30,000 PCS / Monthly

Lead Time

Quantity(Pieces)	1 - 200	200 - 500	>500
Est. Time(days)	3~5	7	7~10

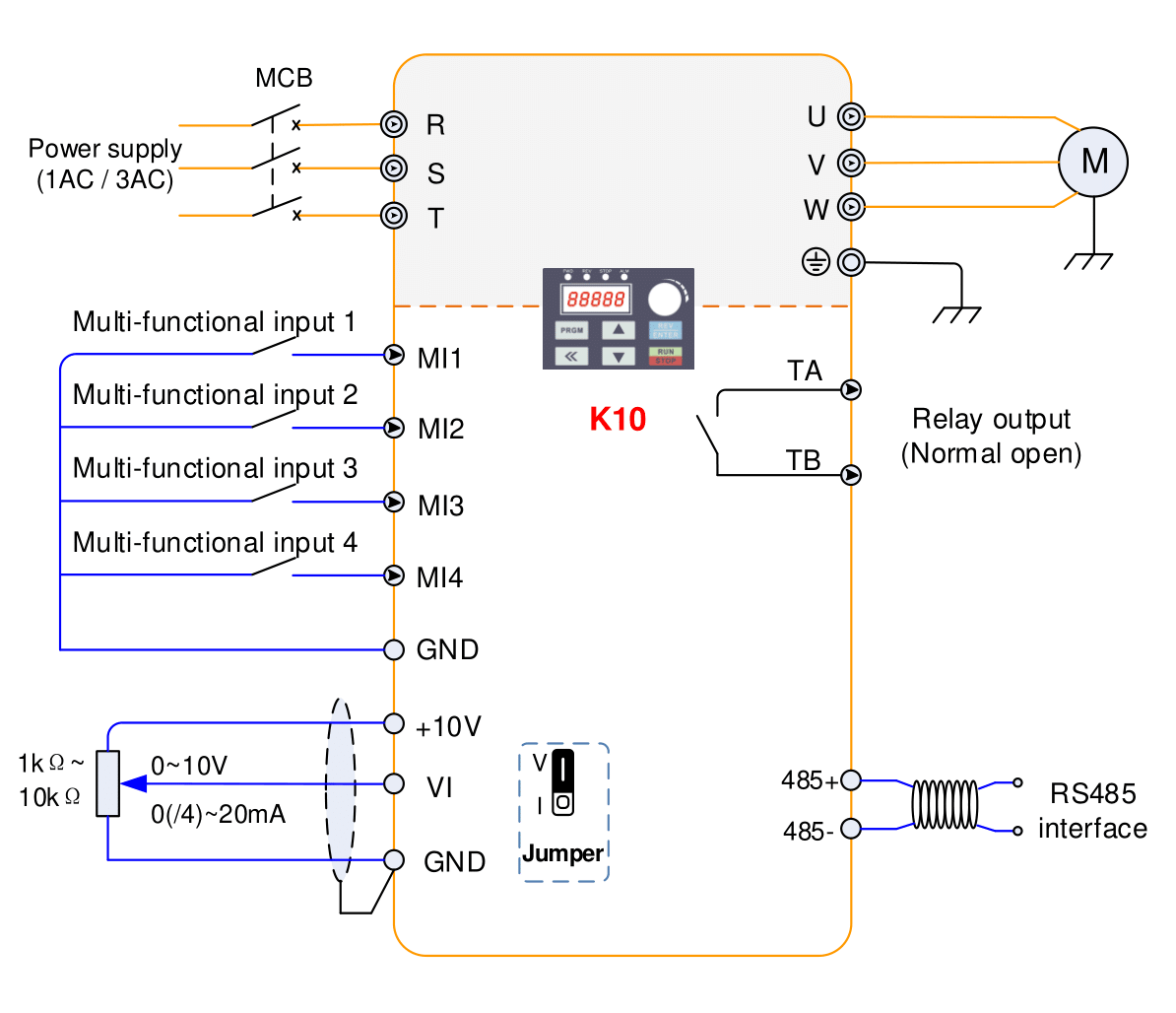

Wiring Diagram

K10 Series Mini Size VFD(图1)

Technical Specifications

Item	Technical Index	Specification
Input	Input voltage	1AC or 3AC 220V±15%, 3AC 380V±15%
Input	Input frequency	50/60Hz±5%
Output	Output voltage	0~rated input voltage
Output	Output frequency	0~600.0Hz
Control Features	Control mode	V/f control
	Operation command mode	Keypad control Terminal control Serial communication control (Modbus)
	Frequency setting mode	Digital setting, analog setting, pulse frequency setting, serial communication setting, multi-step speed setting & simple PLC, PID setting, etc. These frequency settings can be combined & switched in various modes.
	Overload capacity	150% / 60s, 180% / 10s, 200% / 1s.
	Starting torque	1Hz/150% (V/f)
	Frequency accuracy	Digital setting: 0.01Hz Analog setting: maximum frequency ×0.05%
	Automatic voltage regulation	Keep output voltage constant automatically when input voltage fluctuating
Input/output terminals	Input terminals	Programmable digital input: 4 multifunctional inputs 1 programmable analog input: VI: 0~10V / 4~20mA
	Output terminals	Relay output: 1 channel
	Communication terminals	Build-in RS485 communication interface, support MODBUS-RTU communication protocol
Environment	Ambient temperature	-10~40°C, without direct sunshine.
	Humidity	90%RH or less (non-condensing)
	Altitude	≤1000M: output rated power, <1000M: output derated
	Storage temperature	-20~60°C

Selection Guide

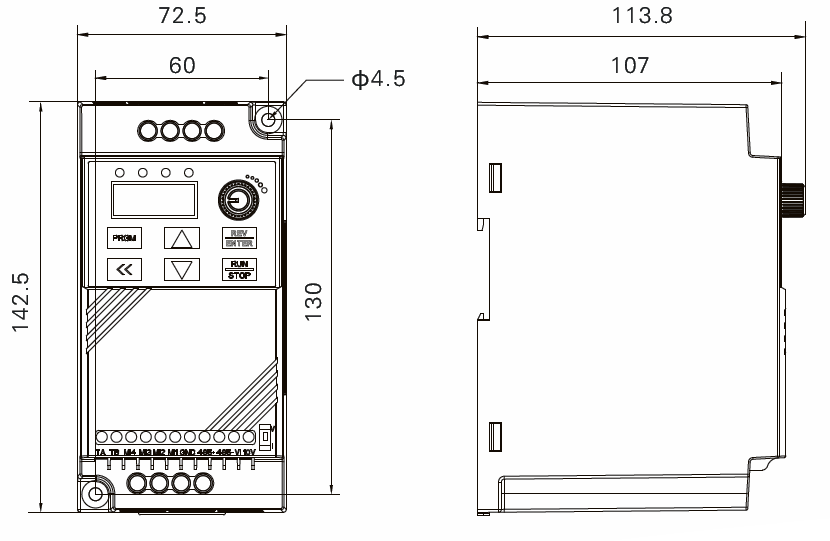

Outlook and dimensions

KS100 Series Mini Size VFD(图2)

Model list

Model	Output power (kW)	Output current (A)	Motor
Model	Output power (kW)	Output current (A)	kW	HP
1AC 220V±15%
K10-00004S2	0.4	2.3	0.4	0.5
K10-00075S2	0.75	4	0.75	1
K10-00150S2	1.5	7	1.5	2
3AC 380V±15%
K10-00075T4	0.75	2.1	0.75	1
K10-00150T4	1.5	3.8	1.5	2
K10-00220T4	2．2	5.1	2.2	3
