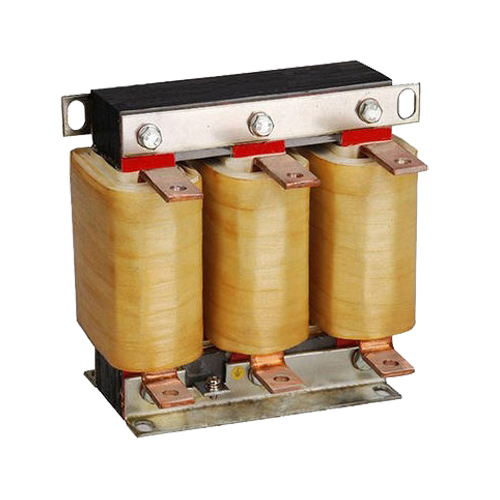

Input & output reactor (choke)
Technical Specifications
1. Rated Voltage: φ3/440VAC
2. High Voltage testing:3.5 KV 60s
3. Operating Frequency: 50/60 Hz
4. Insulation class: H
5. Rated Current: 3A ~ 800 A
6. Altitude: <100 0 meters
7. Ambient temperature: -25℃~ 40℃
8. Reactor impedance: 2%
9. Protection category: IP00
DC reactor (choke)
Features
1. Reducing of harmonics , Improvement of the power factor
2. Reducing over-voltage extent, avoid breakdown
3. Reducing the stress caused by noise to motor, extended the life span of motor
4. Improvement of low-frequency conduction emission/sensitivity
Specifications
1. Rated Voltage: DC 500V~700V
2. High Voltage testing: 3000VAC/50HZ/5MA/60s cored winding without arcing discharge
breakdown
3. Switching Frequency: 0~16KHZ
4. Motor Frequency: 0~200HZ
5. Insulation Resistance: >100M, 1000VDC, cored winding
6. Altitude: <1000 meters
7. Ambient temperature: -25℃~ 40℃
8. Relative Humidity: <85%
9. Protection Class: IP00
10. Working Noise: <50dB(1 meter horizontal distance far away from choke)

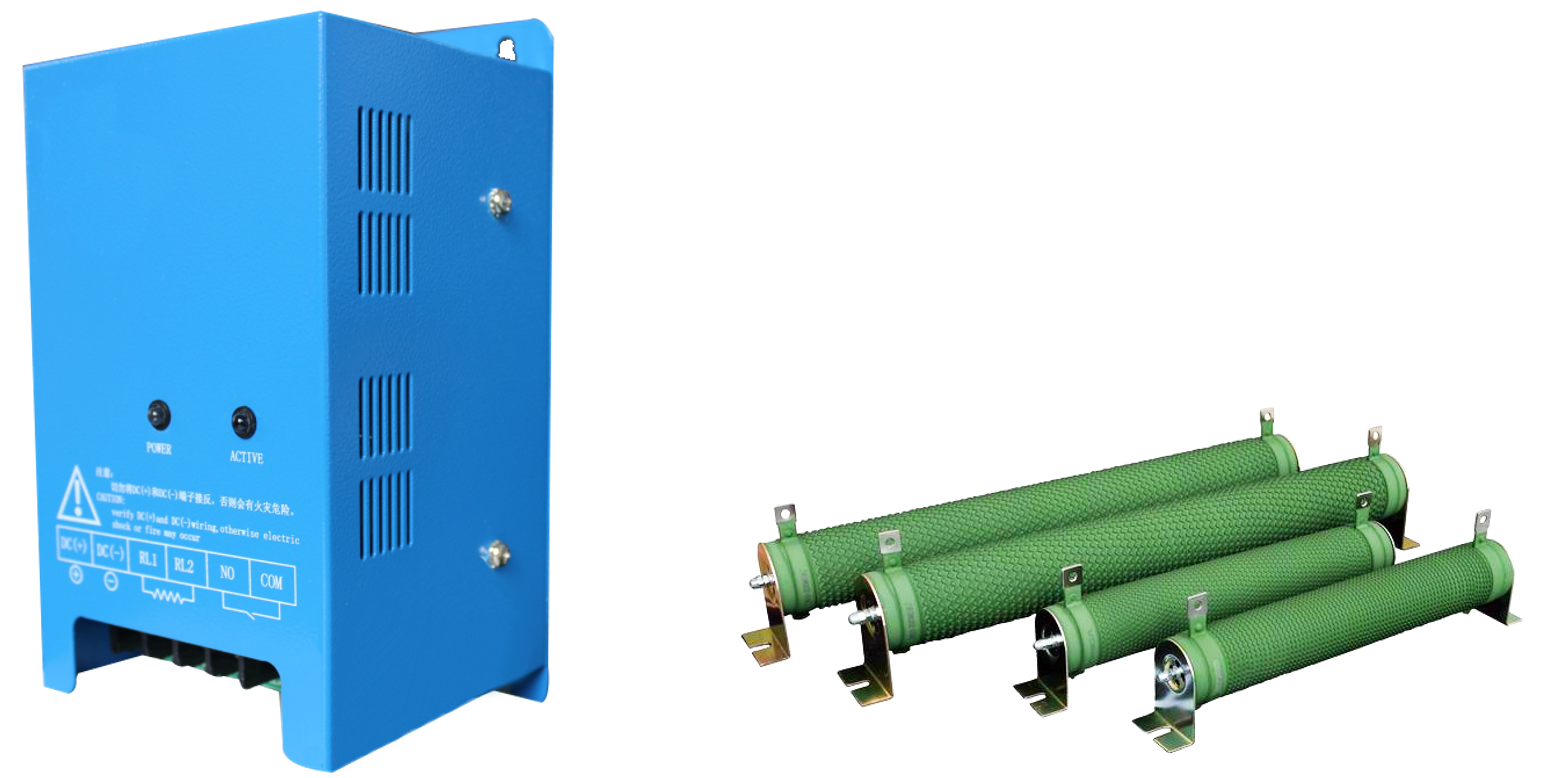

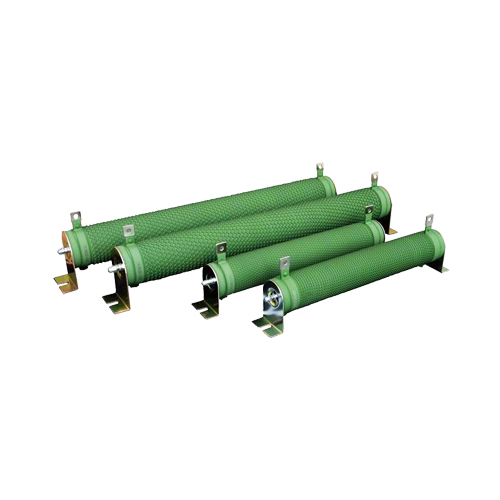

Braking Unit & Braking Resisitor
Technical Specifications
Items | Specifications | |
Power | Input voltage | Three 220V/380V/460±15% |
Input frequency | 50/60Hz±15% | |
Control | Braking type | Automatic voltage tracking brake |
Response time | <1ms | |
Active voltage | 220V level: 340~400V 380V level: 620~720V The maximum bias voltage is ±10V. | |
Hysteresis voltage | <10V | |
Protection function | Over heat (75℃) | |
Display and setting | Status indication | All of the models have the power indicator and working indicator. Some of models which with the operation keypad have the indicators of power, fault, fuses blown and braking status etc. |
Operation monitoring | Some of models which with the operation keypad can monitor the DC bus voltage, internal temperature etc. | |
Activate voltage setting | The ones without keypad can be set by the jumper on the control card. The ones with keypad can be set by keypad directly. | |
Environment | Installation place | Indoor, altitude less than 1000m (every 1000m higher, the output derate 10%), without direct sunshine, without conductive dust and corrosive gases. |
Ambient temperature | -10~40℃, with good ventilation | |
Humidity | ≤90%RH (no condensation) | |
Vibration level | ≤0.5g | |

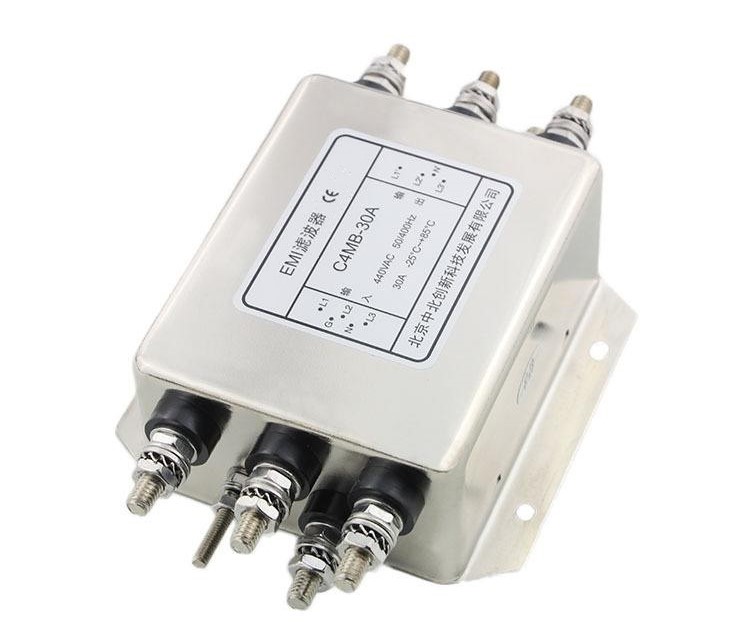

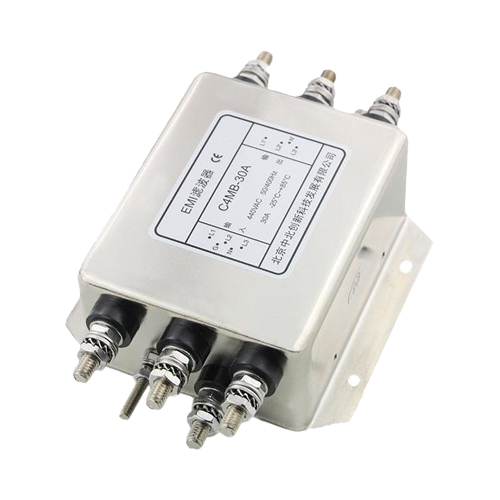

EMI Filter
Features
1. Rated currents up to 1600A
2. Design for Inverter and high noisy environment
3. Excellent Filter performance
4. Compact design with touch-safe Terminal Block
5. Application for any brands of Frequency Inverters
6. Approval for CE Certificate
Applications
1. To reduce the harmonic of Variable Frequency Drive.
2. Applications: elevators, cranes, traction system, HVAC systems (heating, ventilation and air conditioning)
3. General three phase motor drive systems
4. Machine tools: printing machines, packaging machines, milling and drilling machines, textile machines.
5. Three-phase power supplies and UPS
Notea: For more technical details and selection guides, please contact us.
