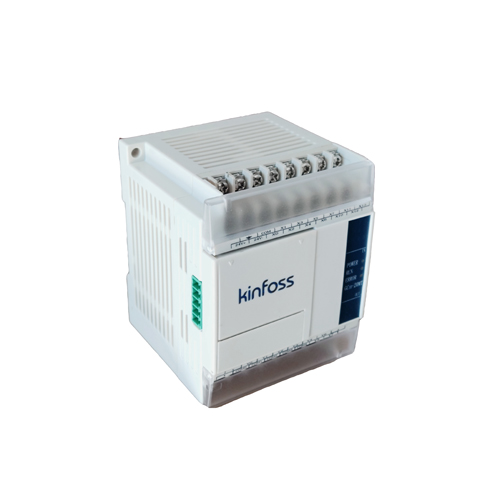

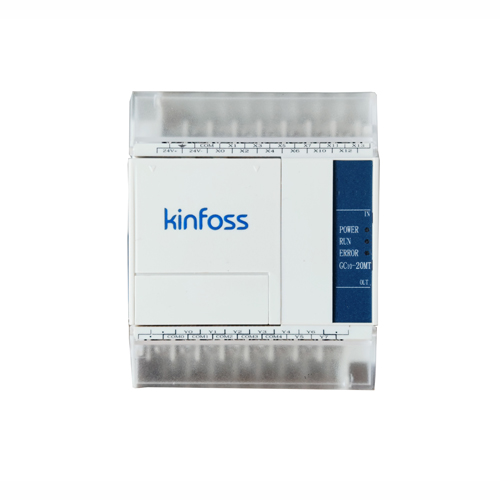

G10 Series PLC Extension Module

INQUIRY

Kinfoss programmable logic controller has different purpose of extension modules, like I/O extenison modules, temperature extension modules etc., customers can select defferent modules based on system requirement.

Technical Specifications of Extension Modules

Analog input module

Items		Specifications
Analog circuit		DC24V (-15%~+20%), Maximum allowable ripple voltage 5%, 48mA (from PLC main module or external power)
Digital circuit		DC3.3V, 25mA (from PLC itself)
Transform speed		2ms/channel
Analog signal input range	Voltage signal	-10V~10V, input resistance is 500kΩ
	Current signal	-20mA~20mA, input resistance is 250Ω
Resolution	Voltage signal	5mV
	Current signal	20µA
Precision		±1% full measure range
Isolation		The analog circuit and digital circuit are isolated by digital isolator; The analog circuit and 24VDC power is internal isolated; No isolation between analog channels.

Analog output module

Items		Specifications
Analog circuit		DC24V (-15%~+20%), Maximum allowable ripple voltage 5%, 48mA (from PLC main module or external power)
Digital circuit		DC3.3V, 25mA (from PLC itself)
Transform speed		1ms/channel
Analog signal input range	Voltage signal	-10V~10V, (external load resistance >1kΩ)
	Current signal	0~20mA, (external load resistance <500Ω) 4~20mA, (external load resistance <500Ω)
Resolution	Voltage signal	5mV
	Current signal	20µA
Precision		±1% full measure range
Isolation		The analog circuit and digital circuit are isolated by digital isolator; The analog circuit and 24VDC power is internal isolated; No isolation between analog channels.

Thermocouple temperature input module

Items	Specifications
Items	℃		℉
Analog circuit	DC24V (-15%~+20%), Maximum allowable ripple voltage 5%, 48mA (from PLC main module or external power)
Digital circuit	DC3.3V, 25mA (from PLC itself)
Type of thermocouple	K, J, E, N, T, R, S
Transform speed	100ms/channel
Rated temperature range	Type K	-100~1200℃	Type K	-148~2192℉
	Type J	-100~600℃	Type J	-148~1112℉
	Type E	-100~850℃	Type E	-148~1562℉
	Type N	-100~1200℃	Type N	-148~2192℉
	Type T	-200~300℃	Type T	-328~572℉
	Type R	0~1600℃	Type R	32~2912℉
	Type S	0~1600℃	Type S	32~2912℉
Minimum resolution	Type K	0.3℃	Type K	-0.54℉
	Type J	0.2℃	Type J	0.36℉
	Type E	0.3℃	Type E	0.54℉
	Type N	0.3℃	Type N	0.54℉
	Type T	0.2℃	Type T	0.36℉
	Type R	0.5℃	Type R	0.9℉
	Type S	0.5℃	Type S	0.9℉
Precision	±1% full measure range (±1.5℃)
Isolation	The analog circuit and digital circuit are isolated by digital isolator; The analog circuit and 24VDC power is internal isolated; No isolation between analog channels.

Thermal resistance temperature input module

Items	Specifications
Items	℃		℉
Analog circuit	DC24V (-15%~+20%), Maximum allowable ripple voltage 5%, 48mA (from PLC main module or external power)
Digital circuit	DC3.3V, 25mA (from PLC itself)
Type of thermal resistance	PT100, JPT100, Cu100, Cu50
Transform speed	100ms/channel
Rated temperature range	PT100	-150~600℃	PT100	-238~1112℉
	JPT100	-150~500℃	JPT100	-238~932℉
	Cu100	-30~120℃	Cu100	-22~248℉
	Cu50	-30~120℃	Cu50	-22~248℉
Minimum resolution	PT100	0.2℃	PT100	0.36℉
	JPT100	0.2℃	JPT100	0.36℉
	Cu100	0.2℃	Cu100	0.36℉
	Cu50	0.3℃	Cu50	0.36℉
Precision	±1% full measure range
Isolation	The analog circuit and digital circuit are isolated by digital isolator; The analog circuit and 24VDC power is internal isolated; No isolation between analog channels.

Extension Modules Selection List

Models	Digital input	Digital output	Remark
GC10-0808ERN	8	8	Relay output
GC10-0808ETN	8	8	Transistor output
GC10-0016ERN	0	16	Relay output
GC10-0016ETN	0	16	Transistor output
GC10-0016ENN	16	0	/
GC10-1616ERA	16	16	External power supply Relay output
GC10-1616ETA	16	16	External power supply Transistor output
GC10-1616ERN	16	16	No need external power supply Relay output
GC10-1616ETN	16	16	No need external power supply Transistor output
