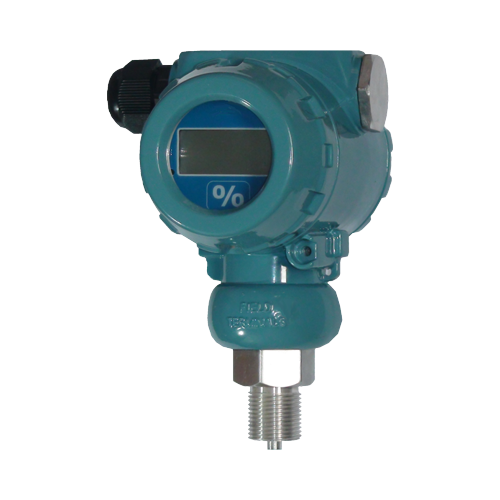

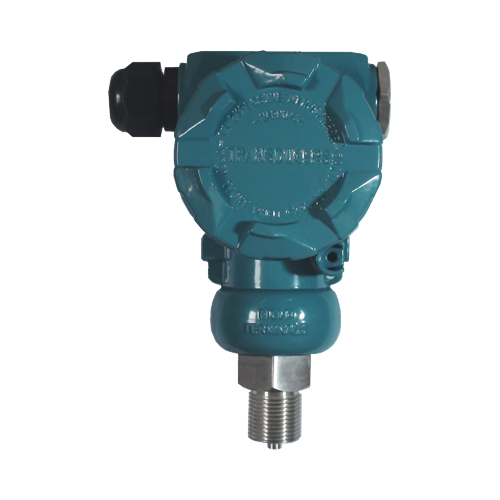

RZ25 Series Explosion-proof Pressure Transmitter
Product Details
RZ25 series pressure transmitters are industrial pressure measurement instruments which have high accuracy, wide range of application and excellent function-prize ratio. The pressure measurement types include positive pressure (relative pressure and sealed relative pressure), negative pressure, absolute pressure, D/P (differential pressure), etc.
Metal isolated diaphragm structure silicon piezo resistance or ceramics capacitor sensors are chose to be RZ25’s sensitive pressure measurement element. Packaging structure are micro-integration structure which package both sensor and electrical circuit in one stainless steel shell. Signal processing uses imported conditioning circuit that has high-stability, high-efficiency, better linearity (<0.01%). All products experienced strict test and burn-in screening. All above mentioned assures that transmitters have high accuracy, excellent stability and anti-interference capability:
Product Features:
l Reversed polarity and transient overcurrent/overvoltage protection, in accordance with EMI protection requirements.
l Accurate zero/range calibration via inner potentiometer.
l Multi-specification signal for output connection: 4-20mA, RS 485 digital signal, 4-20mA for HART protocol, etc.
l Wide range of measurement.
l Aluminum alloy for electrical shell, various interfaces (flush film type, sanitary type and anti-corrosion type, etc.)
l Protection level: IP65.
l Intrinsic safety type product is in accordance with Chinese national standard GB3836.4 and acquires explosion-proof certificate with indication Ex ia II C T6.
l Flameproof type product is in accordance with Chinese national standard GB3836.2 and acquires explosion-proof certificate with indication Ex id II B T6.
RZ25 integrates superior sensor element, excellent electrical circuit and advanced packaging technology all in one. It’s the ideal pressure measurement product in mechanical and mining area using.
Classical applications:
u Pressure measurement and control system for industrial pipeline and container.
u Pressure measurement application in hydraulic and pneumatic equipment such as aircraft, loader, and compressor.
u Applicable for pressure inspection and control of CNG conveying pipe network and gas refueling station equipment.
Supply Ability
500 PCS / day
Lead Time
Quantity(Pieces) | 1 - 200 | 200 - 500 | >500 |
Est. Time(days) | 2~3 | 3~5 | 6~10 |
Technical Specifications
Functional parameters | |
Measurement range | 0～3kpa…0～100Mpa |
Pressure specification | Positive pressure (Includes gauge pressure and sealed gauge pressure), negative pressure, absolute pressure. |
Accuracy level | ±0.5%FS, ±0.25%FS，±0.1%FS (Test conditions: temperature 20±2℃, temperature vabration <1℃, air pressure 86～106kPa, humidity 45%RH～75%RH, no vibration and electro-magnetic interference) |
Ability of over pressure | 1.1～6 times of measurement range. (Varied from different measurement ranges) |
Working temperature | -40～80℃ |
Zero temperature drift | ≤0.02%FS/℃ (doubled in proportion when lower than 100kPa) |
Full range drift | ≤0.02%FS/℃ (doubled in proportion when lower than 100kPa) |
Annual stability | <0.1%FS/Year (Typical); <0.2%FS/Year (Maximum) |
| Frequency response | Sensor<1ms; transmitter≤15ms |
Service life | >1 million times pressure measurement circle |
Electrical parameters | |
Power supply | 24VDC 12VDC(selected) |
Current load | <(U-10)/0.02Ω [U: power voltage] |
Output signal | Two-line 4～20mA, RS485, etc. |
Dielectric strength | 500V no breakdown |
Insulation resistance | >500MΩ |
The effect of fluctuation of power supply on output | <0.003%FS/V |
Explosion-proof indication | Ex ia IIC T6 |
Requirements for electrical connection and wire diameter | wire diameter Φ4.5～Φ7.5mm or 1m cable |
Physical parameters | |
Applicable medium | Liquid and gas which would not react to the structure material (sensor and seal material) |
Sensor foundation material | Stainless steel, etc. |
Sensor seal material | Fluororubber, ceramics, adhesive, etc. (no seal material for welding structure) |
Protection level | IP65 |
Weight | Approximately 150g～10kg(varied from sub-types) |
Surroundings parameters | |
Atmospheric pressure | 60～110kPa |
Environment humidity | ≤95%RH |
Storage temperature | -40～120℃ |
Vibration | Under the condition of 10Grms, 20～2000Hz variation lower than 0.5%FS (only effective for general specification which the vibration limitation is 15g) |
Impact | After 100g, 10ms impact the variation is lower than 0.5%FS (only effective for general specification which the impact limitation is 120g) |
Electromagnetic/RF interference | Under the condition of 10～300MHz and 15V/m, the error is lower than 0.5%FS |

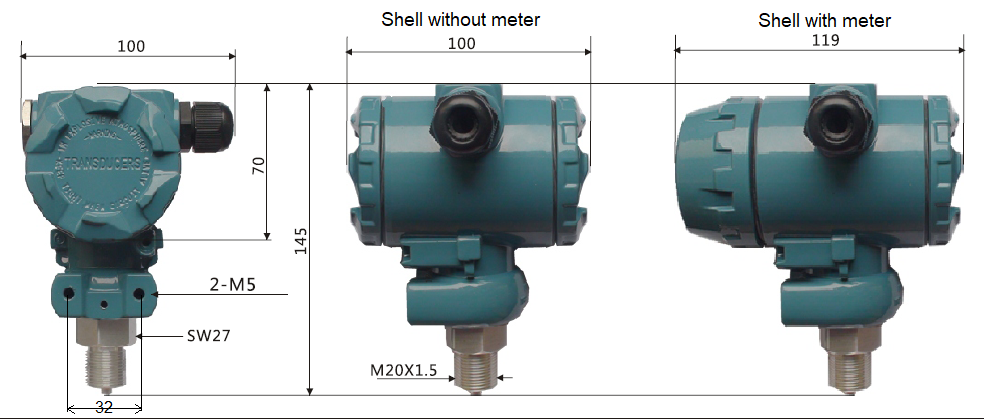

Outline Dimensions
Note:
1. Unit (mm)
2. Despite the difference of connection dimension, the outer dimension may be different; customized products please consult us.
Electrical Connections

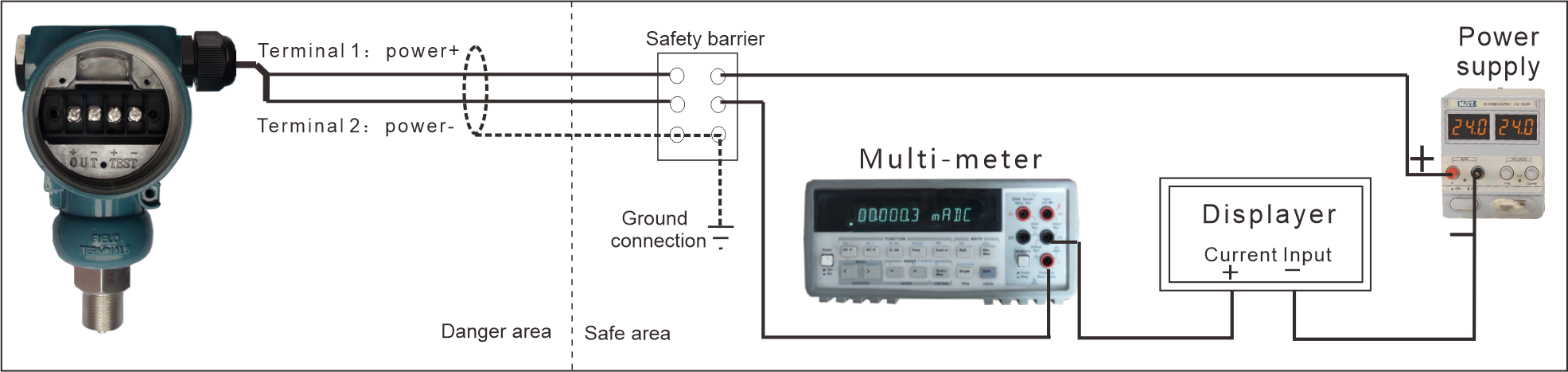

1: Schematic diagram for electrical connection of 2-line 4～20mA analog signal output:

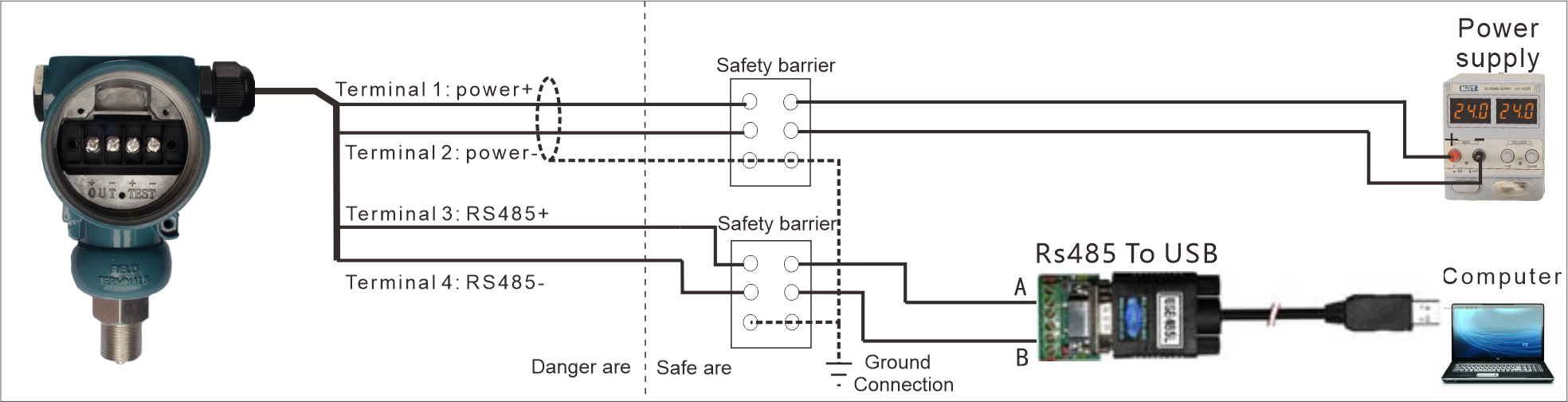

2: Schematic diagram for electrical connection of 4-line 485 digital signal output:

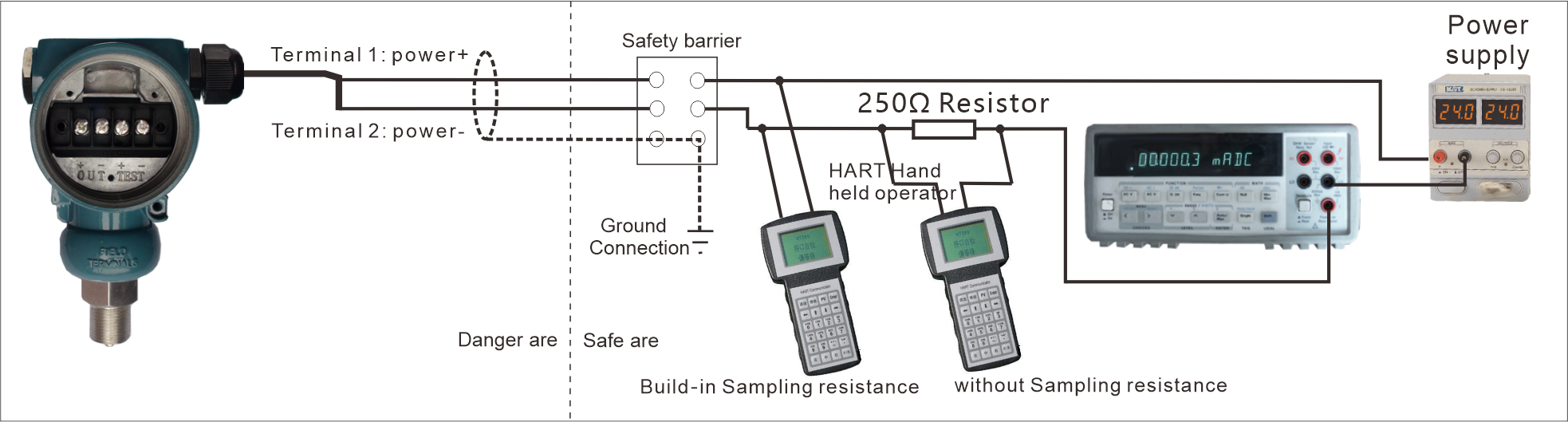

3: Schematic diagram for electrical connection of HART protocol liquid level transmitter:

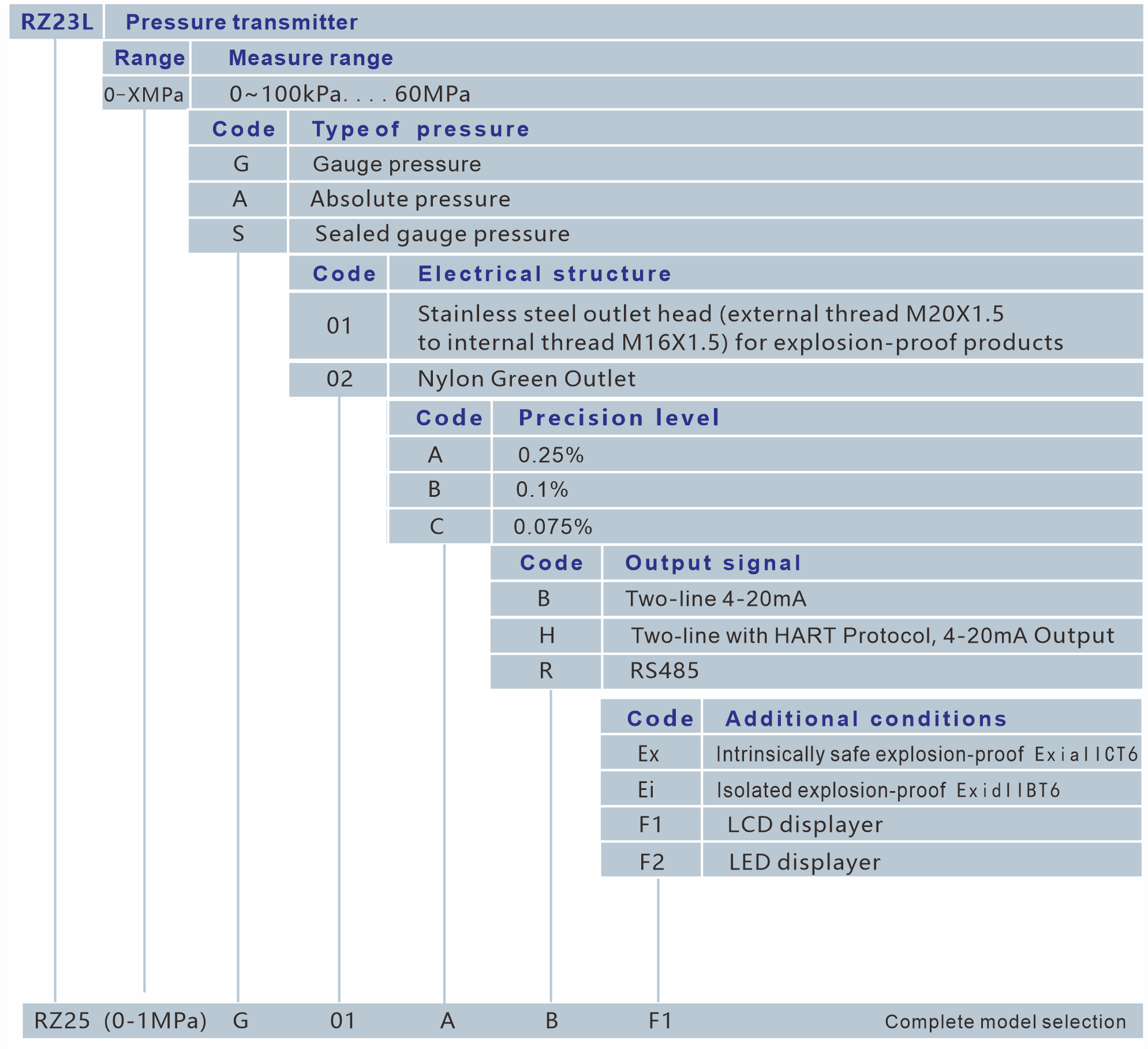

Selection Guide
Note:
1. Special requirements please consult our company and note in order document in detail.
2. The application medium must be compatible with the selected product.
3. If the transmitter's zero needs to be negative, please note the measurement range in the order document.
4. Please note that the explosion-proof product does not include the digital displayer.
5. If order transmitter with LCD or LED meter, power supply cannot be lower than 15V DC.
6. We strongly recommend clients to equip lightning protection device and reliable grounding for transmitters. It can effectively prevent the product's malfunction from lightning.
7. Customized connector type and size can be noted beside the selection model.
