Servo drive

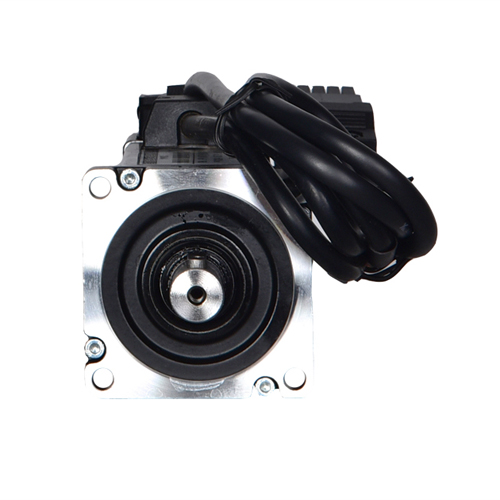

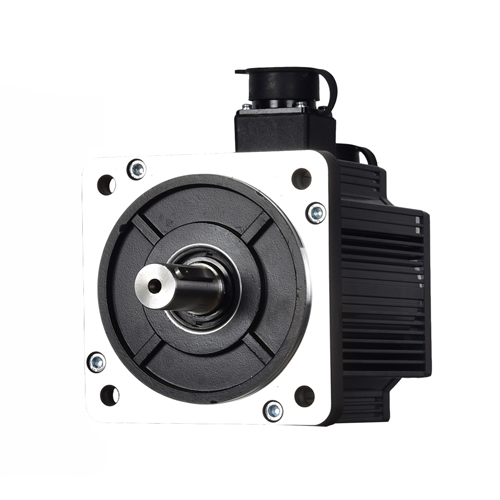

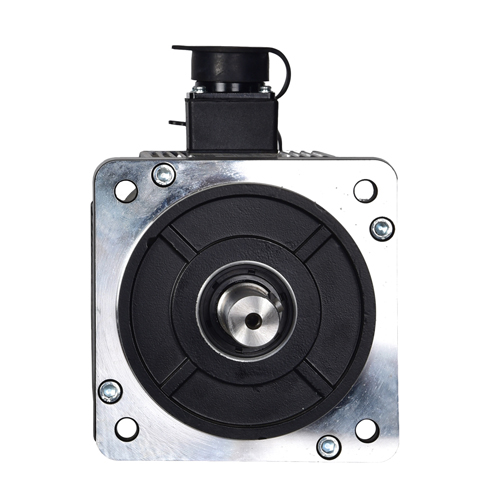

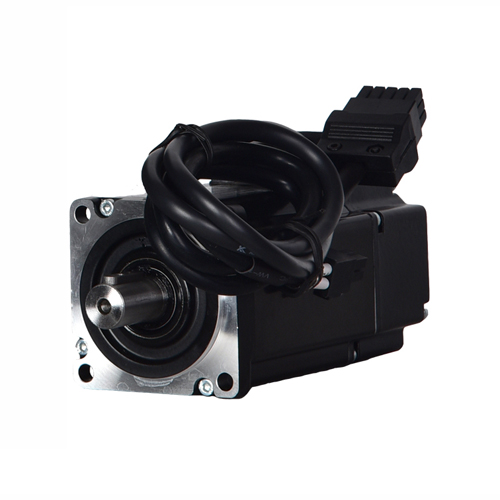

HSM Series Servo Motor

INQUIRY

Product Details

Introduction

HSM series servo motor, match with HS series servo drive, the power range is from 50W to 7.5KW or above. With features of high stability, excellent performance, accuracy control, adaptation, compactness, usability, customizability and multiple functions, they are widely used in the automation equipment and production lines in fields including electronics, hardware, woodworking, engraving, glass, laser, inkjet printing, packaging, textile and garment, etc.

Quick Details

Place of Origin: Shenzhen China Brand name: Kinfoss

Product name: Servo Motor Series No.: HSM

Applications: Industrial automation, machine control Package: Cartoon box

Warranty: 18 months Color: Black

Supply Ability

800 PCS / day

Lead Time

Quantity(Pieces)	1 - 200	200 - 500	>500
Est. Time(days)	2~3	3~5	6~10

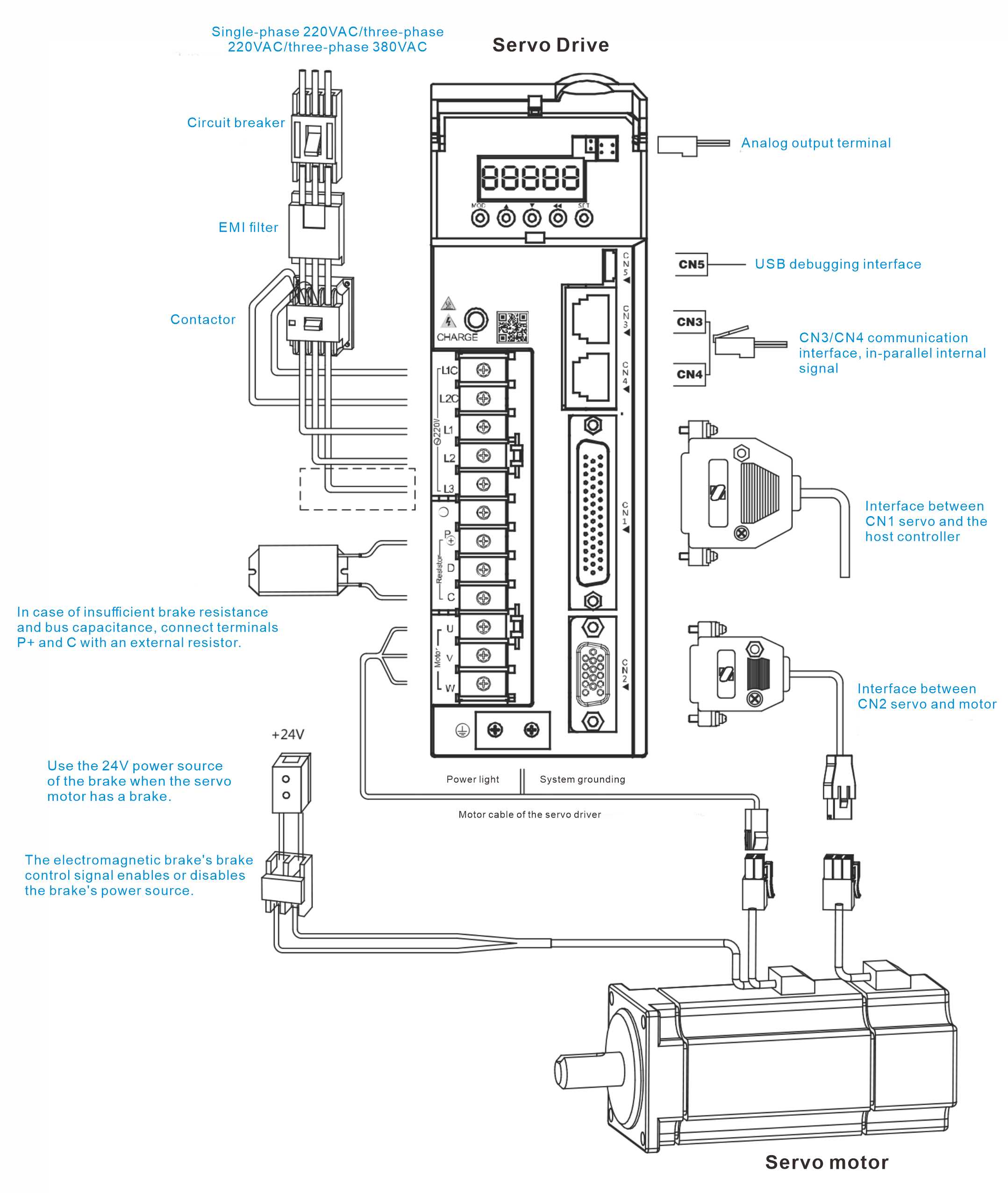

Wiring Diagram

HS Series Servo Drive(图1)

Servo system selection list

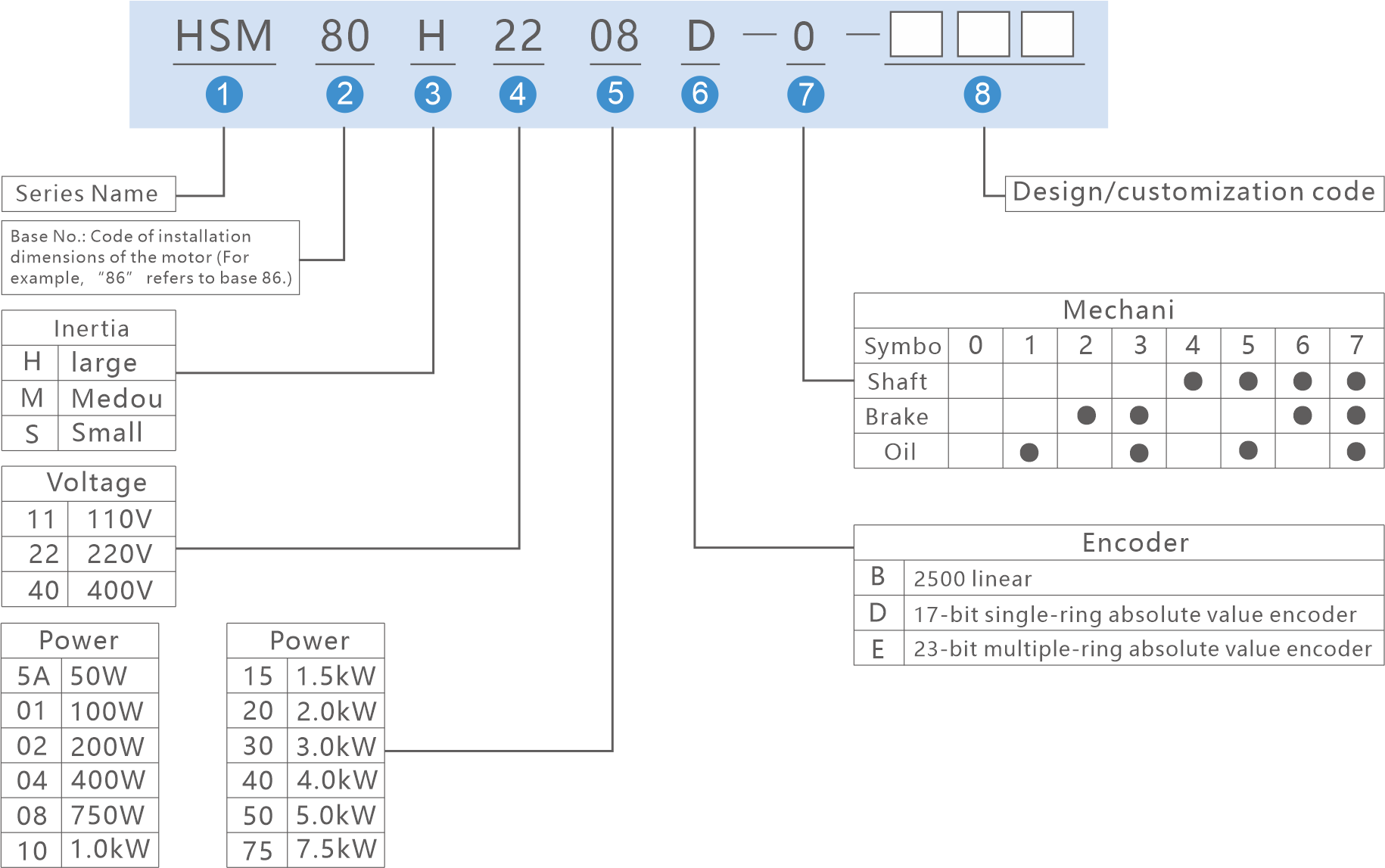

1: Model description

Servo Motor(图2)

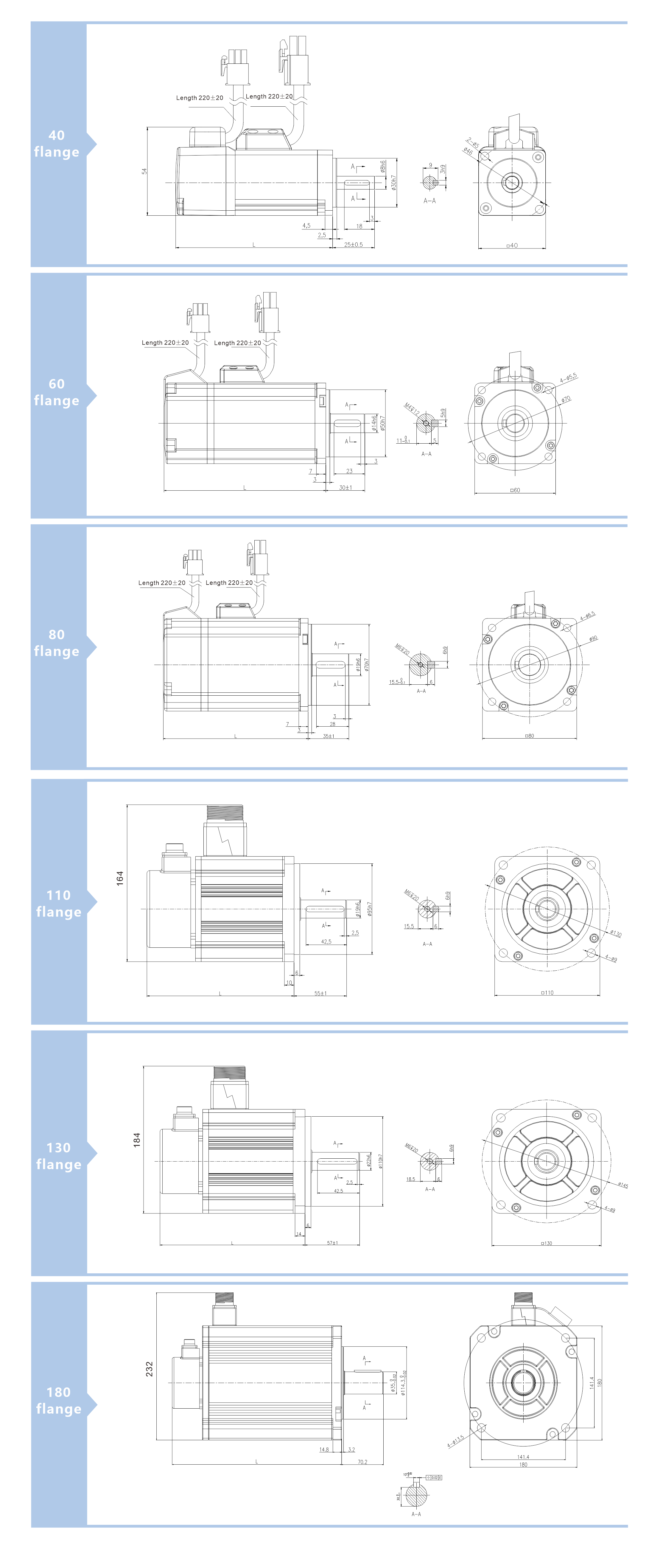

2: Outlook and Dimensions

Servo Motor(图3)

3: Model List

Voltage	Servo drive		Servo Motor
	Model	Size	Flange (mm)	Model (17 bit absolute encoder)	Model (23 bit absolute encoder)	Length (mm)		Rated power (W)	Rated speed (rpm)	Rated torque (N.m)
	Model	Size	Flange (mm)	Model (17 bit absolute encoder)	Model (23 bit absolute encoder)	Without brake	With brake	Rated power (W)	Rated speed (rpm)	Rated torque (N.m)
220V	HS221R6D	A	40	HSM40S225AD	HSM40S225AD	68.5	98.5	50	50	50
	HS221R6D	A	40	HSM40S2201D	HSM40S2201D	88.5	118.5	100	100	100
	HS222R8D	A	60	HSM60M2202D	HSM60M2202D	105	112.5	200	200	200
	HS222R8D	A	60	HSM60M2204D	HSM60M2204D	108	135	400	400	400
	HS225R5D	A	80	HSM80S2208D	HSM80S2208D	123	140	750	750	750
		A	80	HSM80S2210D	HSM80S2210D	154	155	1000	1000	1000
		A	110	HSM110M2210D	HSM110M2210D	151	186	1000	1000	1000
		A	130	HSM130M2210D	HSM130M2210D	154	187	1000	1000	1000
	HS227R6D	A/B	110	HSM110M2215D	HSM110M2215D	151	186	1500	1500	1500
	HS227R6D	A/B	130	HSM130M2215D	HSM130M2215D	166	187	1500	1500	1500
	HS227R6D	B	130	HSM130M2220D	HSM130M2220D	68.5	202	2000	2000	2000
380V	HS405R4D	B	130	HSM130M4020D	HSM130M4020D	166	202	2000	2000	9.55
	HS408R4D	B	130	HSM130M4030D	HSM130M4030D	180	216	3000	2000	14.33
	HS408R4D	B	130	HSM180M4030D	HSM180M4030D	175	264	8800	2000	19.10
	HS40012D	B	180	HSM130H4030D	HSM130H4030D	193	229	3000	1500	19.10
	HS40017D	C	180	HSM180M4045D	HSM180M4045D	192	281	3000	1500	28.65
	HS40021D	C	180	HSM180M4055D	HSM180M4055D	192	281	4500	1500	35.02
	HS40026D	C	180	HSM180M4088D	HSM180M4088D	249	338	5500	1500	42.02
	HS40026D	C	180	HSM180M4075D	HSM180M4075D	249	338	7500	1500	47.75
